Ubit 6-Port SATA III 6Gbps PCIe Controller SATA Card(SA3006)
Port: SATA3.0 * 6
Bus Interface: PCI-E X4
Supported Operating System: Windows XP / 2003 / Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 /MAC / Linux and more...

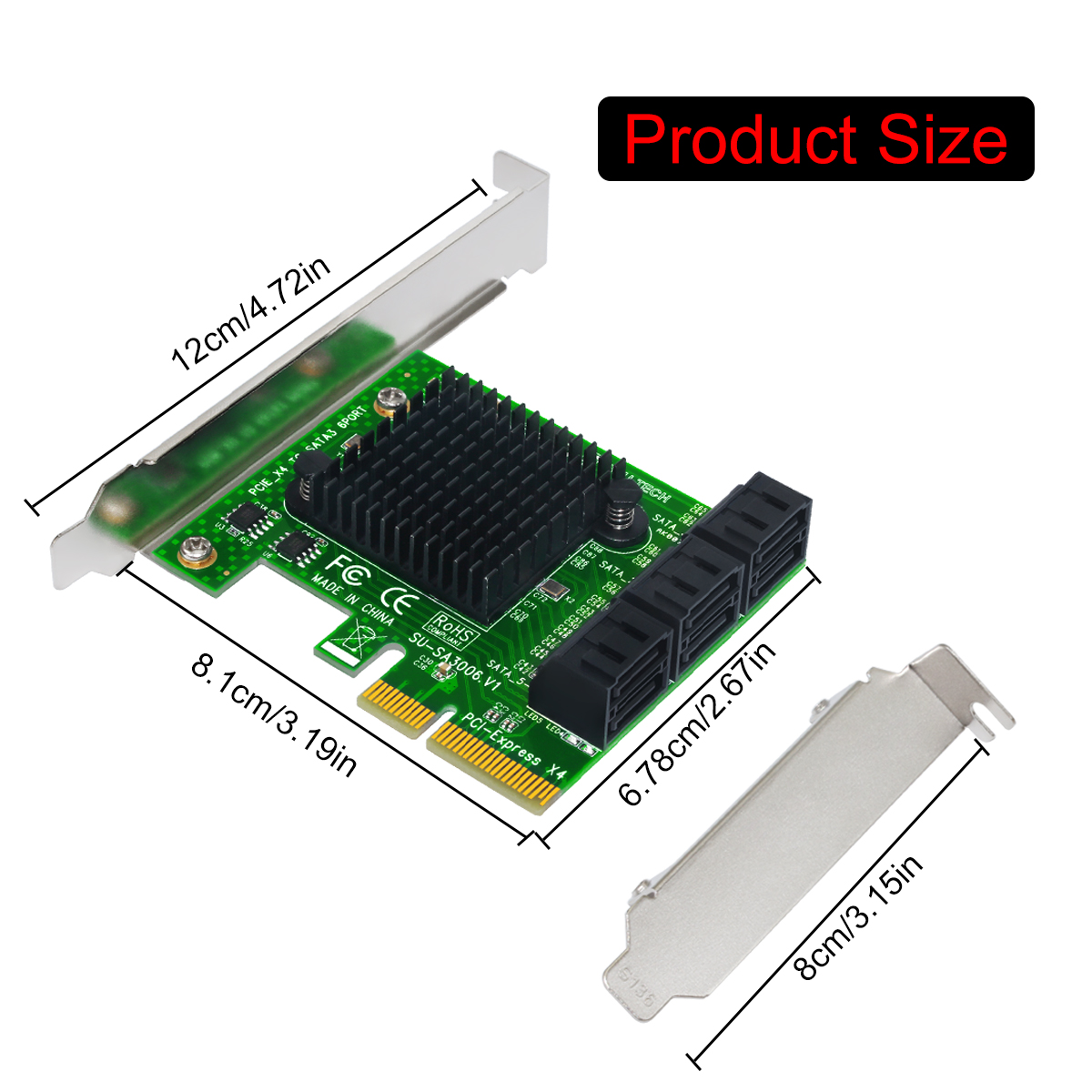

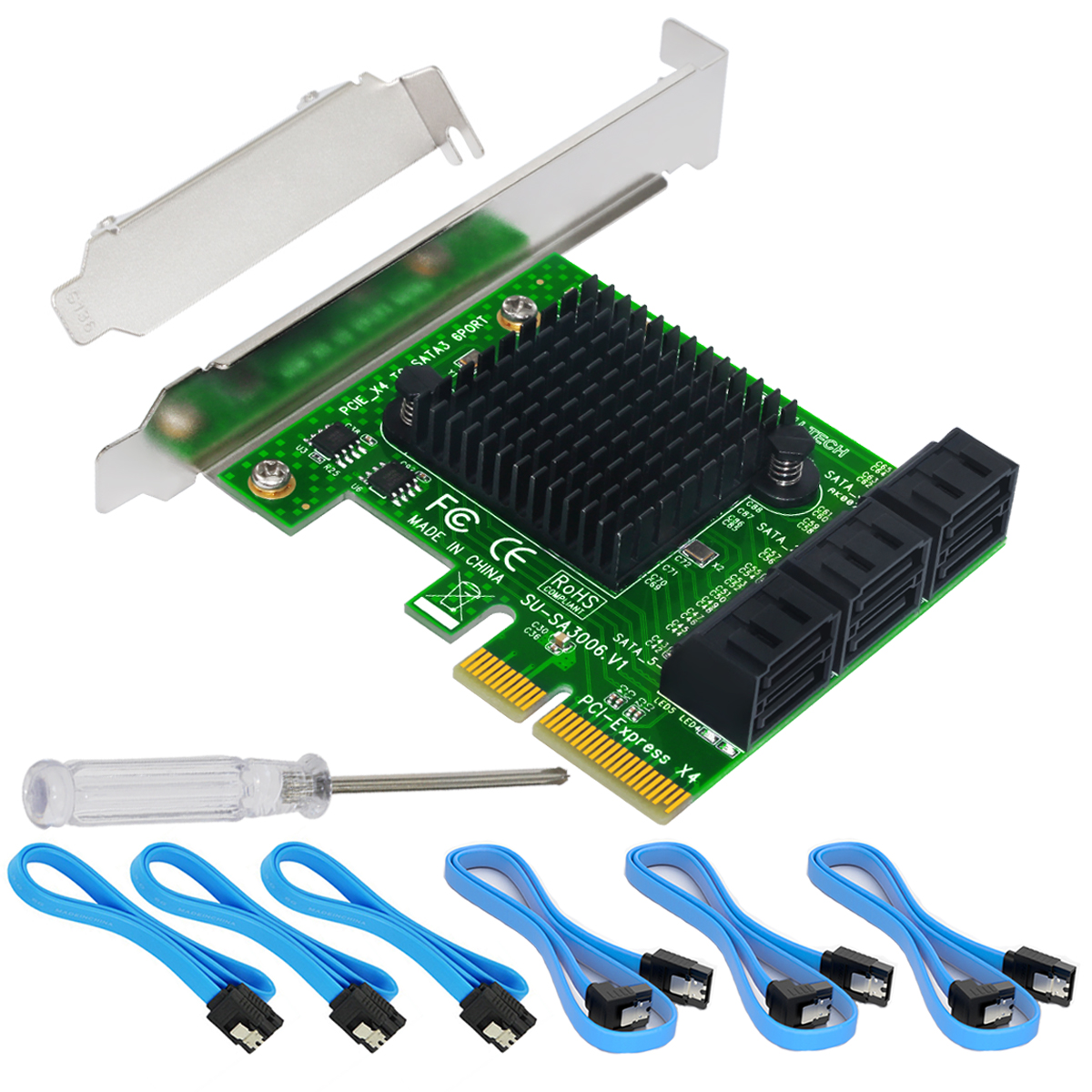

Ubit SA3006 SATA Card PCIe SATA Card 6-Port PCI Express SATA 3.0 Controller Card with Low Profile Bracket PCIe to SATA III Built-in Adapter Converter for Desktop PC Support SSD HDD
The ASM1062 is ASMedia’s second generation Serial ATA Advantage HCI controller, bridges PCI Express Gen2 x2 to two ports of Serial ATA 6Gps, enables Serial ATA PHY up to 6Gps high speed interface, supports SRIS (Separate Refclk Independent SSC) function, complies with Serial ATA Revision 3.2 Specification.
ASM1062 is highly integrated with ASMedia PCI Express and SATA 6Gbps self-designed PHYs. ASM1062 can be applied on PC, mobile, servers, IPC, consumer electronic devices, storage devices, and communication applications.
Embedded 8-bit microprocessor
Option Rom and firmware support through 64K Byte SPI flash
Two GPIO pins can be programmed for the LEDs of each SATA port
20 MHz or 25 MHz external crystal
Integrated Core power switching regulator
3.3V IO power and 1.2V Core power
Support up to two lane of PCI Express
2.5 and 5.0Gbps seed negotiation
Single virtual channel
Embedded Spread Spectrum Controller
Supports Separate Refclk Independent SSC
Supports PCI Express Link Layer Power Management
Supports Message Signaled Interrupt
100MHz differential PCI Express reference clock in
Supports 2 ports Serial ATA PHY
1.5Gbps, 3.0Gbps and 6.0Gbps seed negotiation
SATA PHY 1i/1m/2i/2m/3i
Supports AHCI and IDE programming interface
Supports Native Command Queue (NCQ)
Supports Port Multiplier command based switching
Support Partial and Slumber Power Management States
Supports Drive Power Control and Staggered Spin-up
Supports S.M.A.R.T feature
1） Add a large heat sink for better heat dissipation
2） Rear 6-port design, wiring is more convenient
3） Rear 6-port design, size and chassis common
4） The tail is designed to be smaller, and the chance of blocking the graphics card fan is smaller
5） Four-layer circuit board with isolation layer in the middle for stronger anti-interference ability
6） PCI-E 2.0 version, single port speed can reach 520M or more

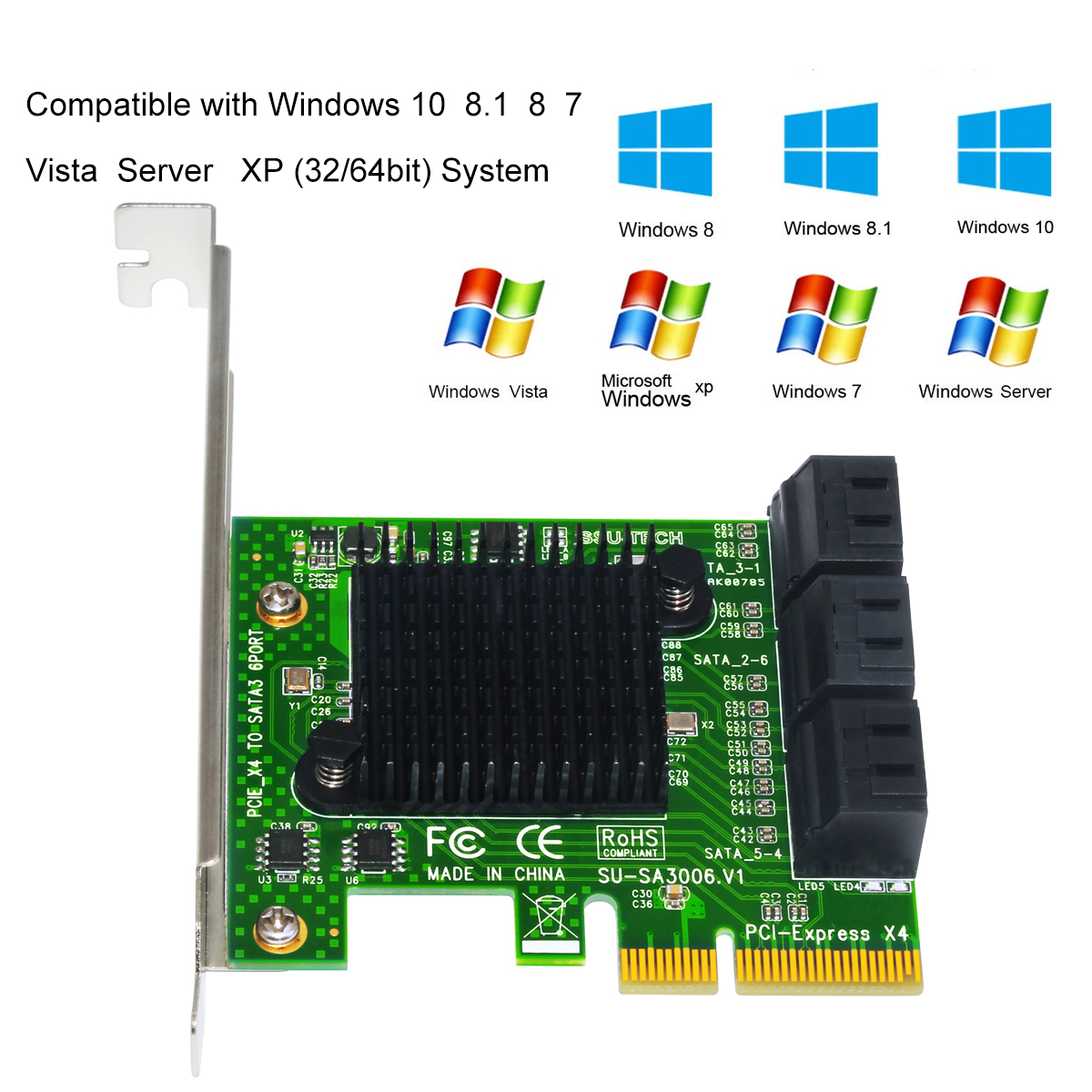

Support Windows XP / 2003 / Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10（32/64 bit）/MAC / Linux and more...
Suitable for PCI-E interface,
Not applicable to PCI interface.

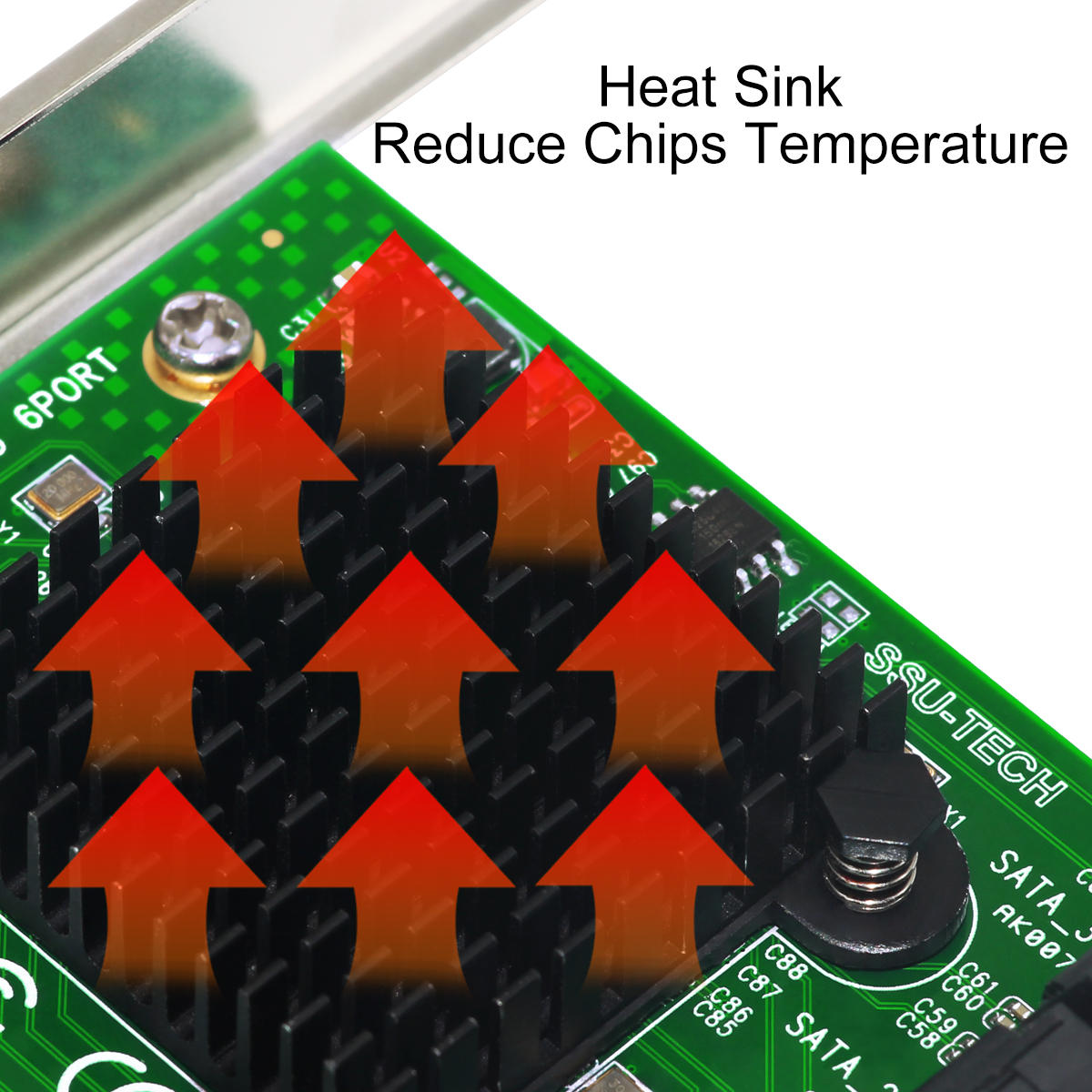

Bigger heat sink
Large area heat sink
Better heat dissipation
Long-term stable work

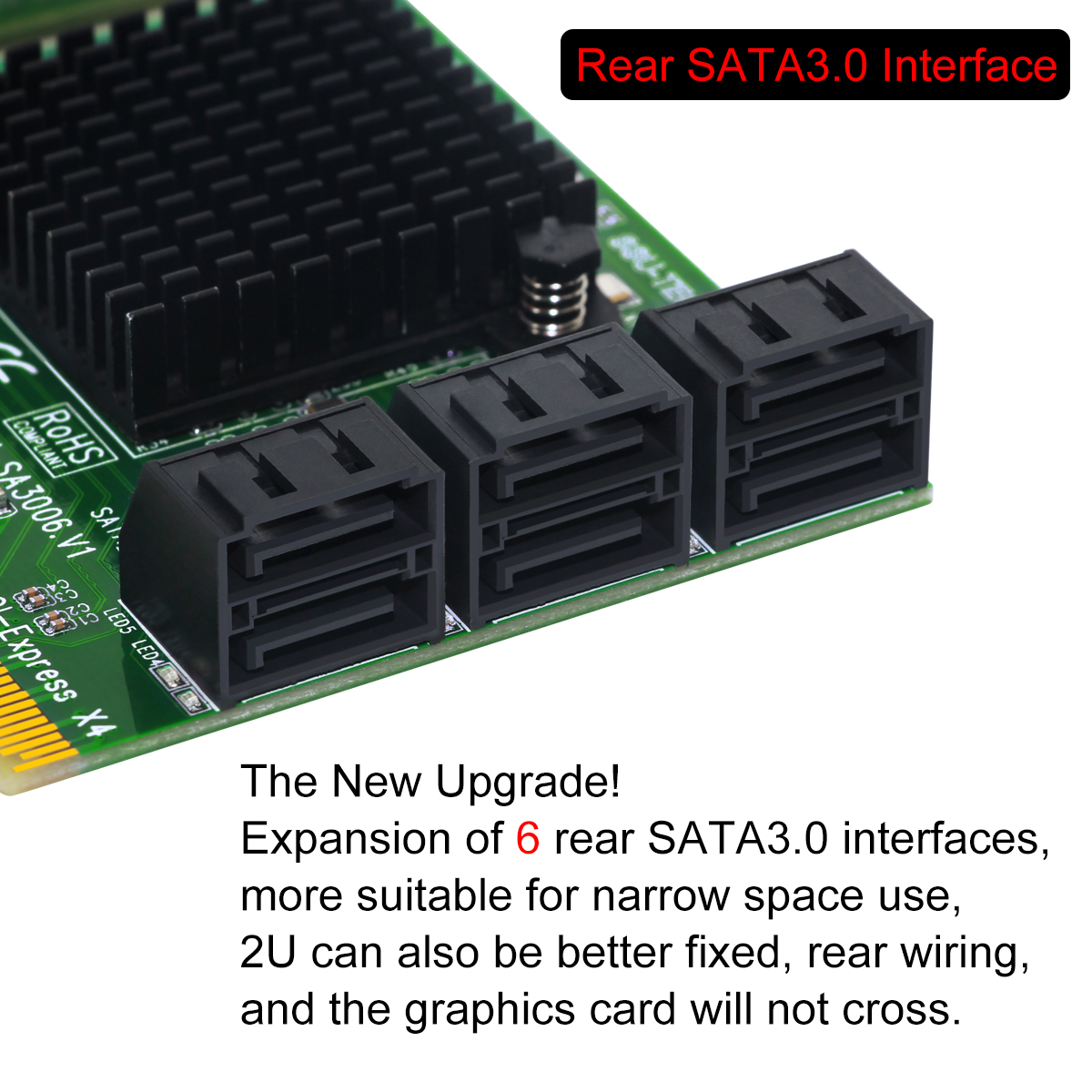

Backside location, convenient for cabling
6 rear SATA3.0 ports are provided, and the interface has a lock to avoid loose cables in use. The SATA interface uses 10 high-precision filter capacitors to effectively suppress interference and ensure signal reliability and integrity. Faster and more stable!
