Ubit-WIE4530 PCIe Wireless Dual Band 5GHz/2.4GHz Wi-Fi Card：

PCIe WiFi Card Intel 5300 Chip Dual Band（5GHz 2.4GHz）450Mbps PCIe Adapter PCI-E Wireless WiFi Network Adapter Faster Speed Better Coverage Larger Capacity

Product Model：WIE4530
Standards：IEEE 802.11a/g/n
Function: Wi-Fi Receiver or Soft AP Mode
Transmitting power：30DBM90 (Maximum)
Antenna：3*3.5dBi External Dual Band Antenna
Data Modulation：OFDM/CCK/16-QAM/64-QAM
Channel：Support 5GHz and 2.4GHz Band Channel
Security protocol：WPA-PSK/WPA2-PSK WEP WPAWPA2
Connect Interface：PCI express X1,Compatible with X4,X8,X16 Slot
Supported Operating Systems： Windows 10, 32-bit*, Windows 10, 64-bit*, Windows 8.1, 32-bit*, Windows 8.1, 64-bit*, Windows 8, 32-bit*, Windows 8, 64-bit*, Windows 7, 32-bit*, Windows 7, 64-bit*, Windows Vista 32*, Windows Vista 64*, Windows XP 32-bit Edition*, Windows XP 64-bit Edition*

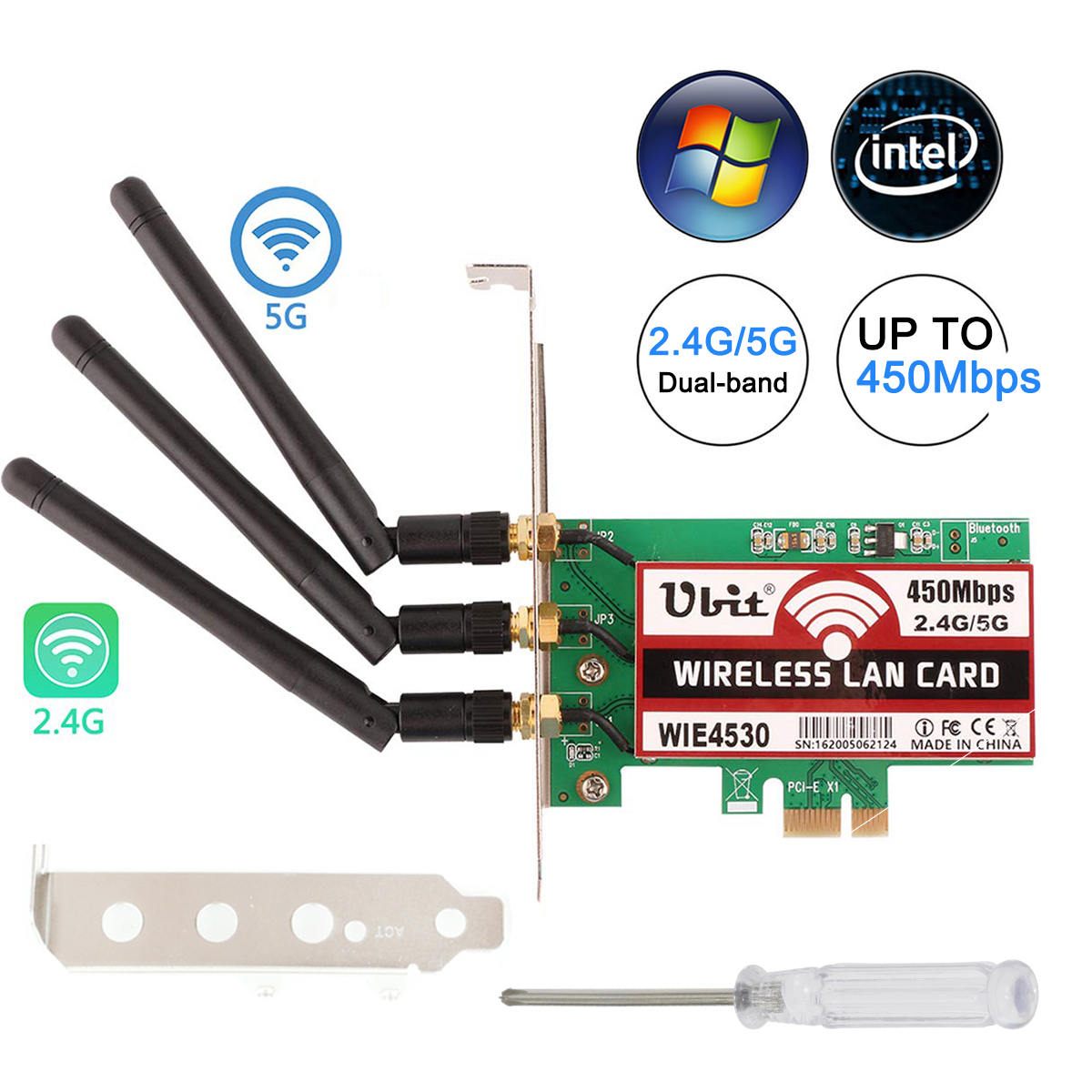

Package Includes：1* Box with the Word "Ubit"；1* Ubit WIE4530 Wireless Dual-band Network PCIe WiFi Card；3* 3.5dBi Antenna；1* Low Profile Bracket；1 * Screwdriver；2 * Screw；1* Drive CD；1* User Manual

Intel Dual Band Wireless 11N 5300 Chip（5GHz 2.4GHz）450Mbps Wireless PCIe WiFi Network Card

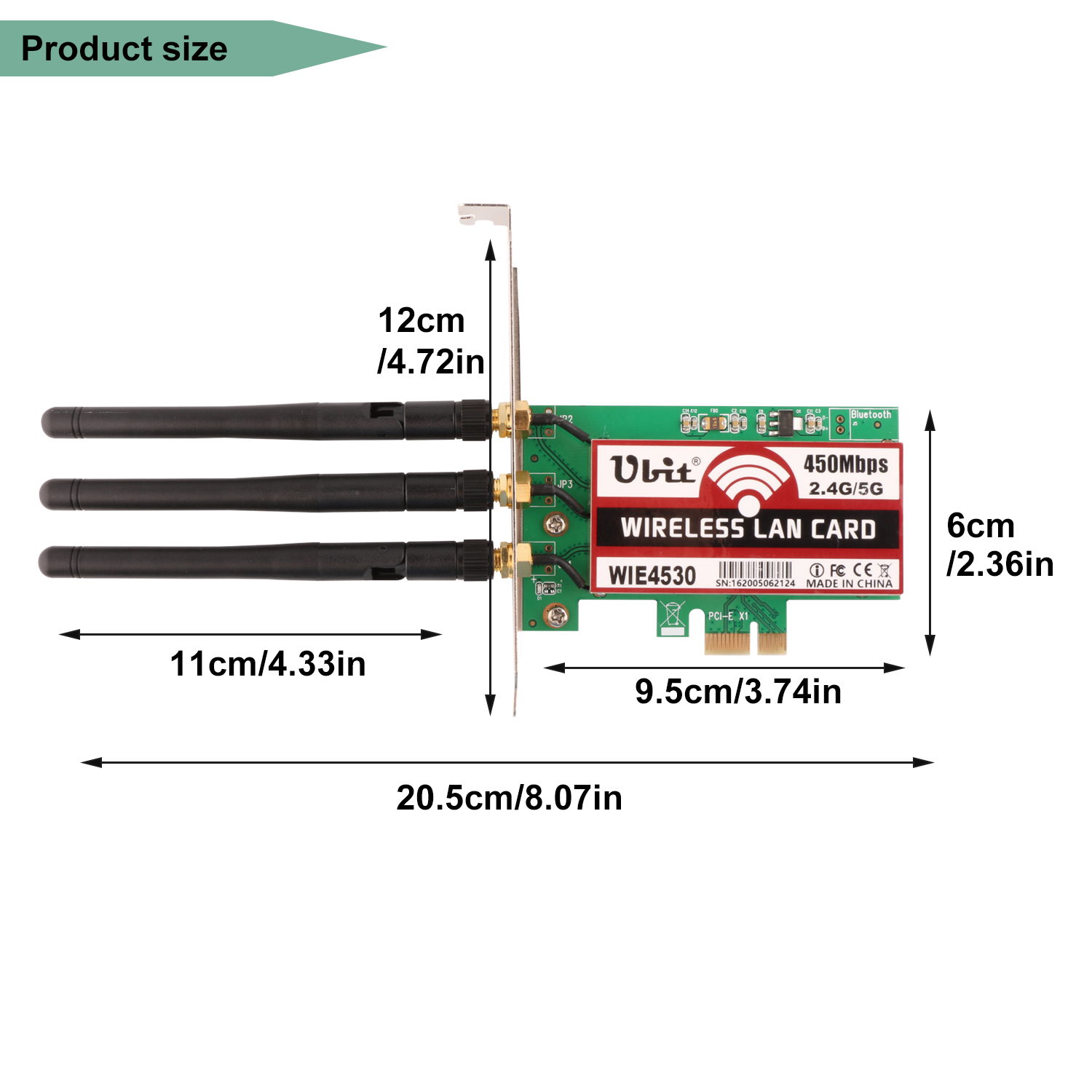

With extra low profile metal bracket (3.15in) for installing on small form factor desktop PC
Powered by PCI Express slot on computer motherboard, no external power supply needed
Other Specification：Intel chipsets, PCI-E 2.0 X1 interface, WPA2/WPA/WEP wireless encryption supported
It supports 3 antenna arrays，which means increased wireless coverage，strong Wi-Fi performance and Wi-Fi connection stability
The PCI Express wireless WiFi card support dual-band 2.4GHz and 5GHz channels for smoother HD video streaming，online gaming，and file sharing
Compatible with Windows 10, 32-bit*, Windows 10, 64-bit*, Windows 8.1, 32-bit*, Windows 8.1, 64-bit*, Windows 8, 32-bit*, Windows 8, 64-bit*, Windows 7, 32-bit*, Windows 7, 64-bit*, Windows Vista 32*, Windows Vista 64*, Windows XP 32-bit Edition*, Windows XP 64-bit Edition*

Ubit-WIE4530 PCIe WiFi Card --- Technical Specifications：


Adopt Intel 5300 Dual Band Chip Supported Operating Systems： Windows 10, 32-bit, Windows 10, 64-bit, Windows 8.1, 32-bit, Windows 8.1, 64-bit, Windows 8, 32-bit, Windows 8, 64-bit, Windows 7, 32-bit, Windows 7, 64-bit, Windows Vista 32, Windows Vista 64, Windows XP 32-bit Edition, Windows XP 64-bit Edition Bands：2.4Ghz, 5Ghz ；Max Speed：450 Mbps Wi-Fi ：802.11a/g/n ；Compliance： PCI, CISP, FIPS, FISMA	Ubit-WIE4530 PCIe WiFi Card Wireless Dual-band Technology Combined with 4th Gen Core processors Ubit-WIE4530 wireless dual band wifi card,5GHz-450Mbps/2.4GHz-450Mbps 2x2 Wi-Fi adapter lets you move at the speed of life with faster speeds (up to 450 Mbps), higher capacity, broader coverage	Easy Setup and Secured WiFi Signal Very easy to install on supported systems Make sure your system is compatible with this WiFi card Learn to install and set up WiFi signals through the user manual Ubit wireless WiFi network card, making wired wireless, making work and life more convenient!

Trouble Shooting and Solution:

1. Why this card can’t connect to 5G or PCs can’t find 5G the signal on my PC?

PCs find 5GHz signal but can’t connect: ①. Connect to 2.4G first, make sure it is connected .②. Find your 5G signal and connect, most of them will work. PCs cannot find my 5G signal but 2.4G works: ①.Connect 2.4G signal first. ②. Restart PC or re-plug this Wireless card. Or in Device Manager-Remove this card and install the driver again for it. Then PCs will find 5GHz and will allow PCs to connect.

2. Why my PCs always get poor signal or drops sometimes?

A. Test Wi-Fi signal in PC area(same spot, same height) by cell phone check if PC was placed in a Wi-Fi dead zone if yes, please change location for PCs. B. If the distance little long PCs will get poor signal or only 2.4G signal. To improve this please considers change the PCs or Wireless AP’s location. Or you can buy a more power Wi-Fi Antenna for it.

3. Why my PC find 2.4G signal only?

PCs was placed too far away from Router.5GH band will support more data speed by covers a small area. Wireless AP or Router’s signal may cannot reach PCs location. Considers decrease the distance between Router and PC.

4. I am a Linux user how can I get source code to compile my PC?

Go to open the mini CD in the package find ATH9K links get source code online. Or go to our site download ATH9K driver.

5. Windows10,8.1,8 system cannot load this card automatically how to fix this ?

Just need to install the drivers in mini-CD, the device will works properly. If do not have CD ROM, please go to our site download drivers for the models in your hand.

6. My PCs find few signals only, not as expected performance,

how to fix this?

Please remove Wi-Fi card from PCs and install it again.At the same time please screw Wi-Fi antenna and make sure it is screwed correctly. Most of the time it is Wi-Fi antenna wasn’t screwed properly.

7.There a PCIE X16 port only,is it working on this ?

Absolutely YES,Works on PCIE X1, X4, X8, X16 slot

8.Where I can find support from Ubit ?

Get prompt tech-support：http://www.evisionde.com/ or Contact us after-sales Email：Ubit@evisionde.com
