Product Description
Standard Setting Guide
Customer FAQ

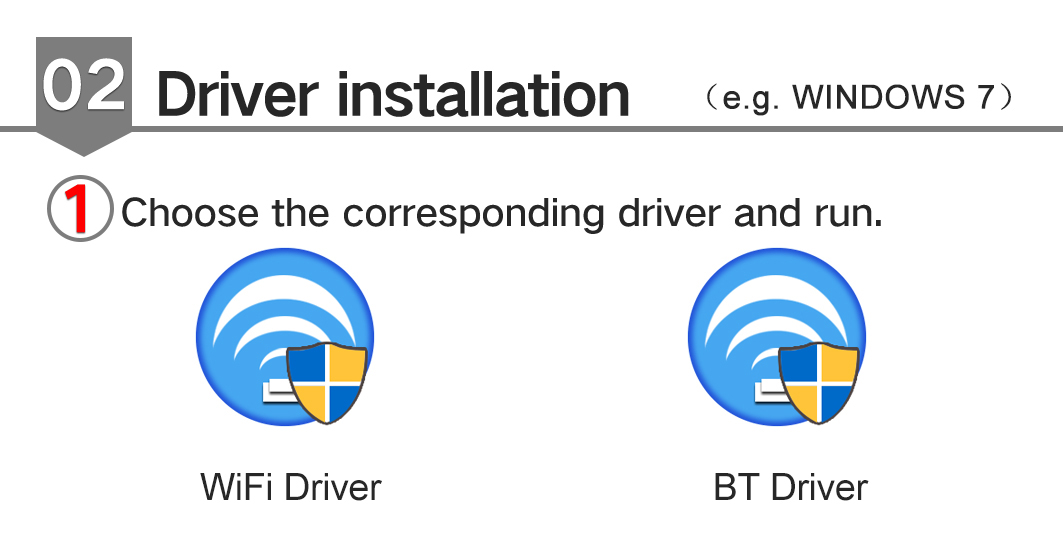

Driver Download
Video

【Wi-Fi 6 technology with 1024QAM and 160MHz channels】 deliver from 80 MHz to 160 MHz higher peak data rates (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments comparing to 802.11ac. doubling the channel width and creating a faster connection from your router to the device. With Wi-Fi 6, you can enjoy 8K movies, large file downloads and uploads, and responsive smart home devices – all without buffering.

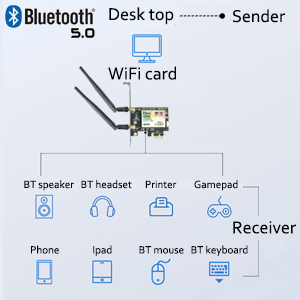

【Bluetooth 5.0】Provides 4x5 range over Bluetooth 4.2 using the same Tx power, enabling coverage throughout the home. Bluetooth 5 also doubles data rates speed for faster transmissions thereby reducing the overall power consumption. Support connecting with Bluetooth headset, Bluetooth stereo, Bluetooth keyboard, Bluetooth mouse and others for more conveniences and demands.
【Wireless Functionality in Pre-boot Environment】 Support for Wi-Fi network and BLE HID connectivity in the platform’s UEFI (Unified Extensible Firmware Interface) environment during its boot stage. This capability enables use cases like OS recovery over Wi-Fi and BLE-based keyboard and mouse connectivity in this pre-boot environment.
【MU-MIMO】Multi-user MIMO (MU-MIMO) is a set of multiple-input and multiple-output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
【Supported Operating Systems】 Windows 10, 64-bit*, Google Chrome OS*, Linux*

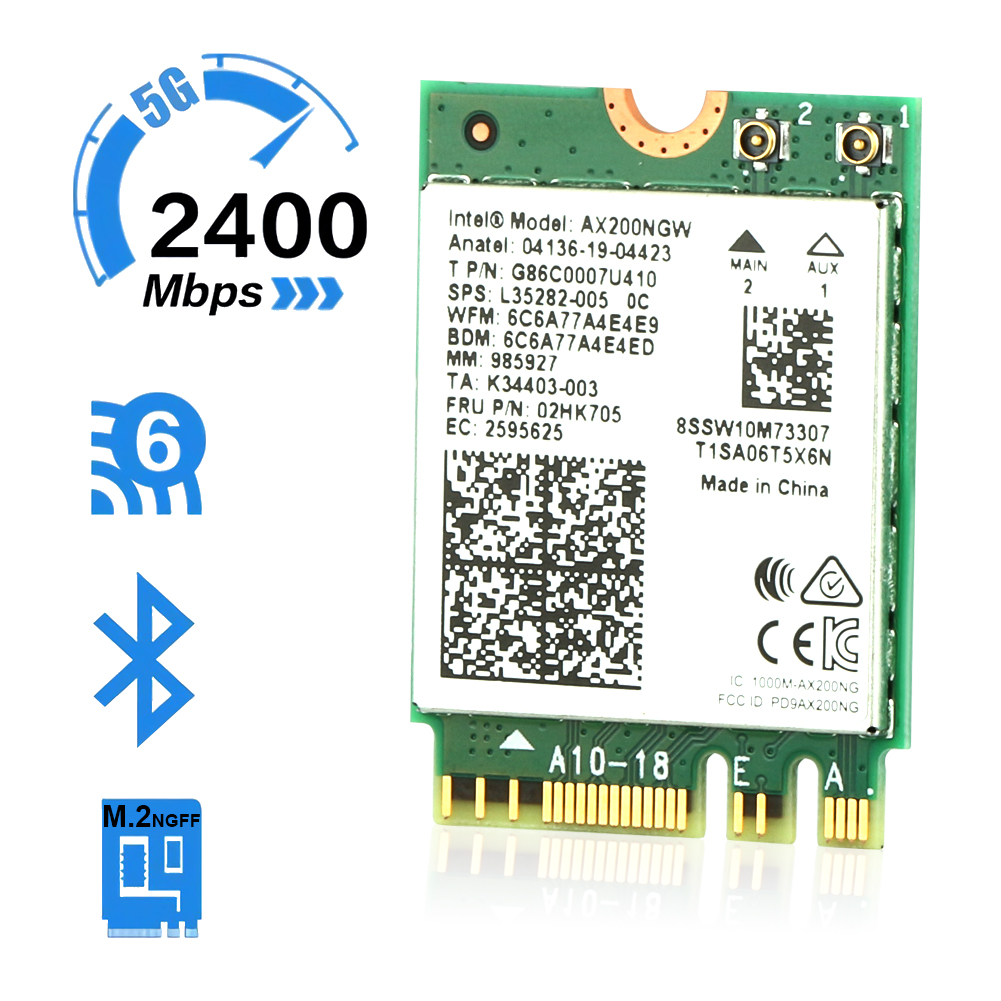

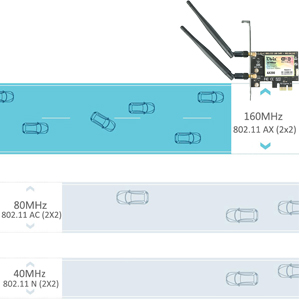

	Deliver from 80 MHz to 160 MHz higher peak data rates (up to 2.4Gbps) Deliver from 80 MHz to 160 MHz higher peak data rates (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments comparing to 802.11ac. doubling the channel width and creating a faster connection from your router to the desktop. With Ubit AX200, you can enjoy 8K movies, large file downloads and uploads, and responsive smart home devices – all without buffering.

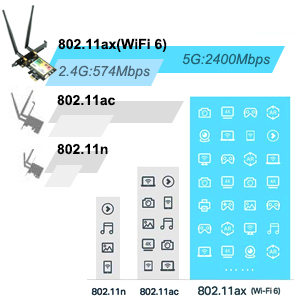

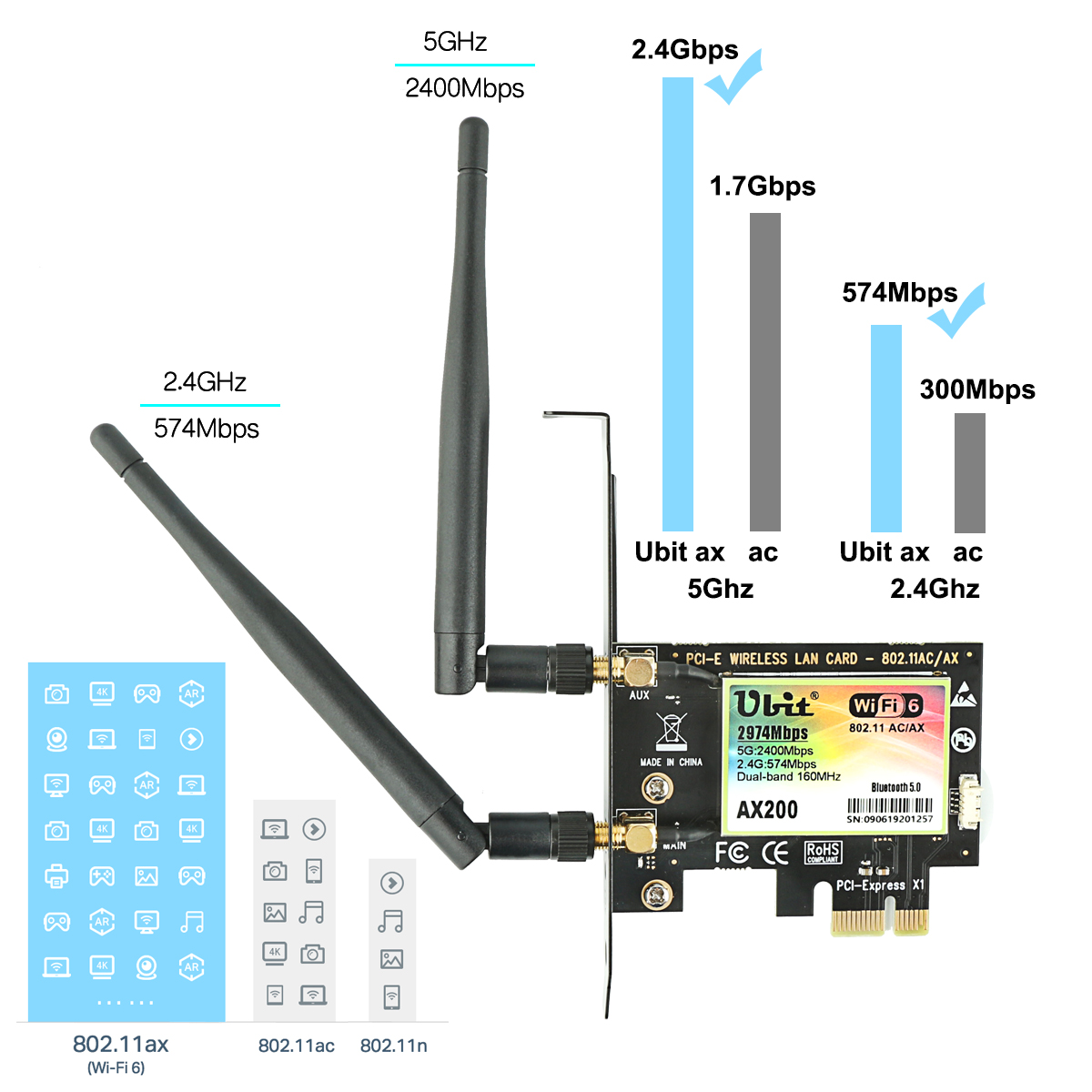

Get Faster AX WiFi for your Desktop PC 5GHz : UP to 2400Mbps 2.4GHz : UP to 574Mbps Install your adapter easily by plugging into your desktop’s PCI-E slot to upgrade your connection. Provides freedom to move desktops anywhere with a WiFi connection.Deliver nearly 3x higher peak data rates (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments compared to 802.11ac.

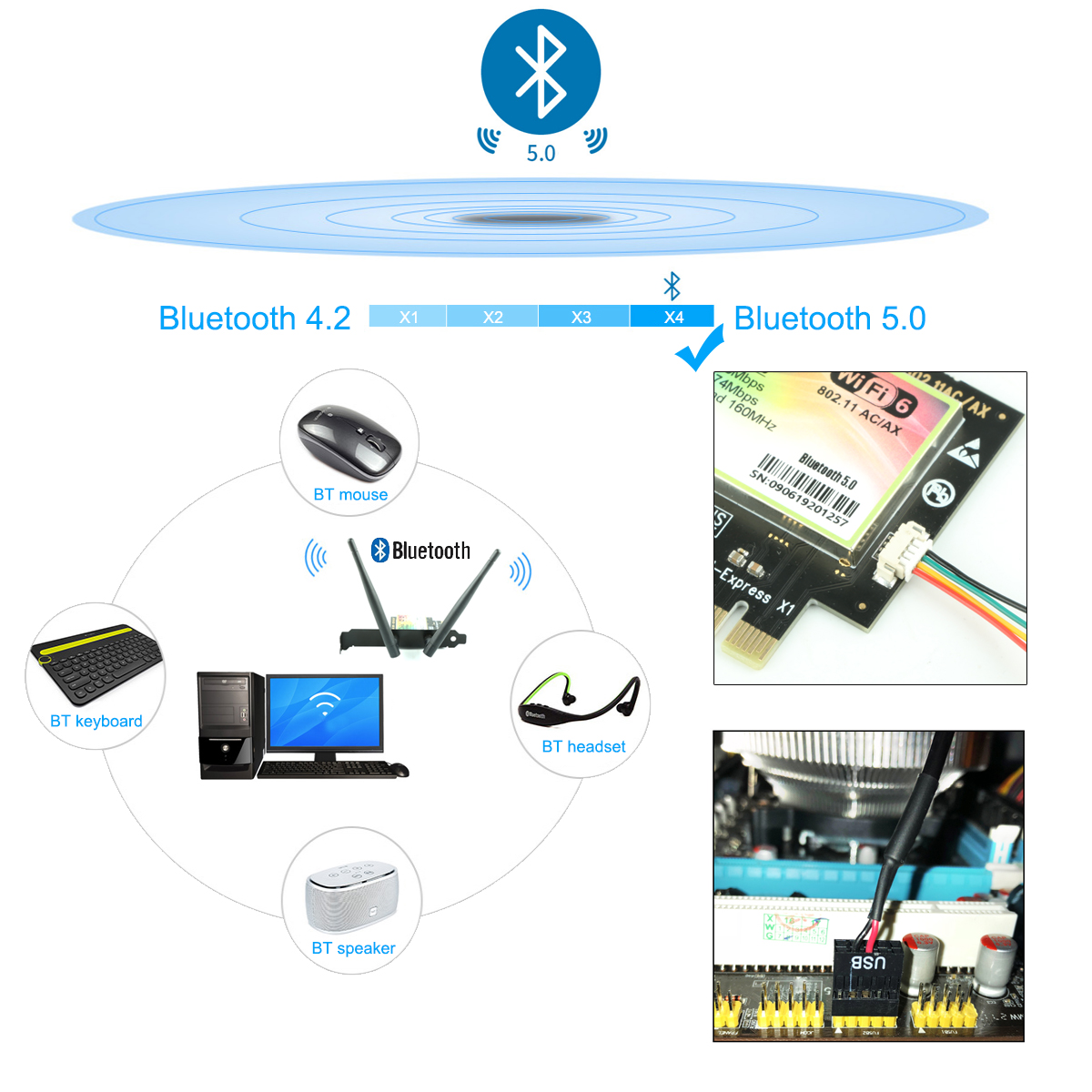

	Bluetooth 5.0 More Speed, Distance, and Throughput Bluetooth 5.0’s primary benefits are improved speed and greater range. In other words, it’s faster and can operate over greater distances than older versions of Bluetooth.With Bluetooth 5.0, devices can use data transfer speeds of up to 2 Mbps, which is double what Bluetooth 4.2 supports.
Operating Systems Microsoft Windows* 10, Linux, Chrome OS

Increased Efficiency with OFDMA

Make Latency A Thing of The Past

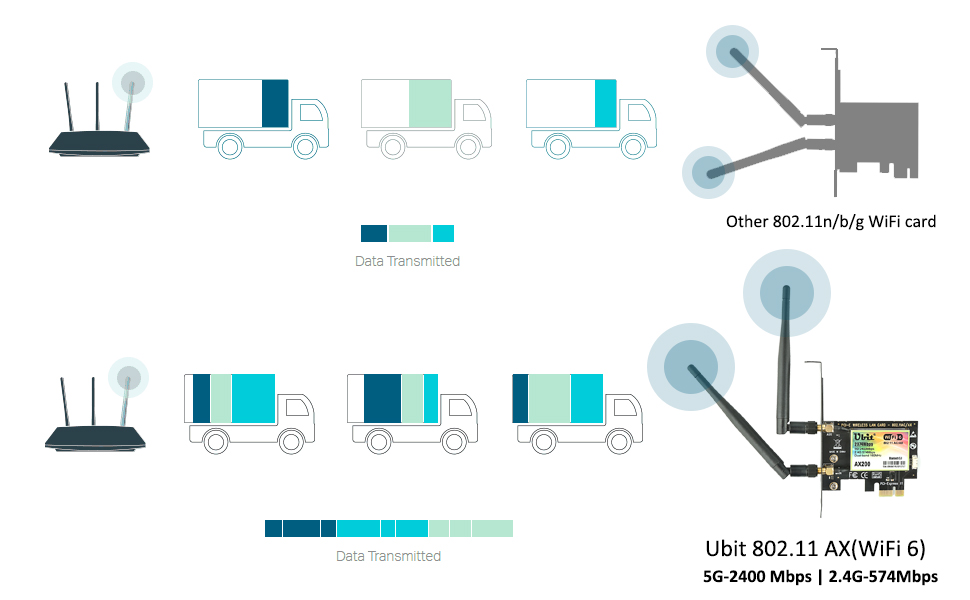

The Ubit AX200 WIFI card based on standard OFDMA for increased efficiency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac WiFi, each delivery truck or “packet” could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.

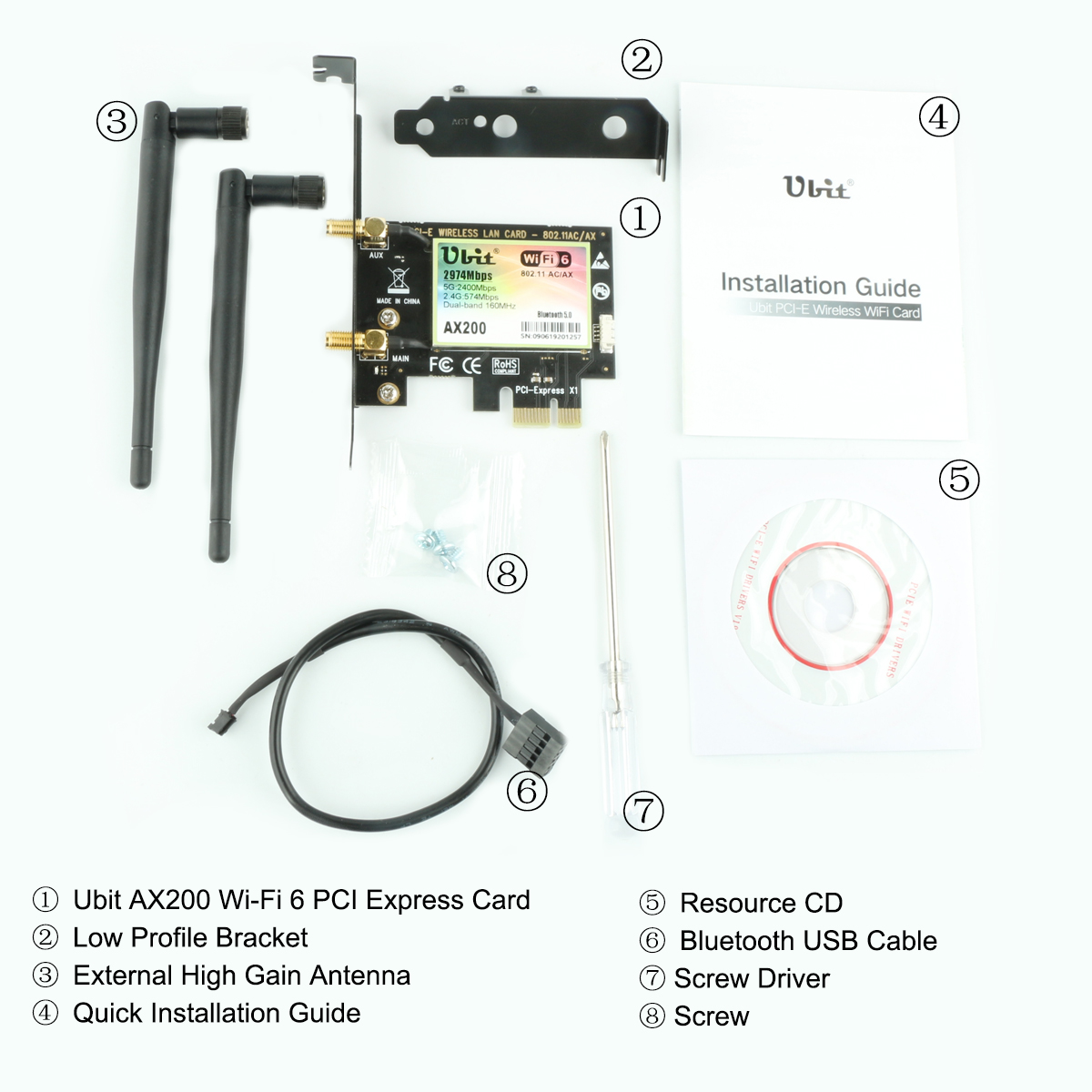

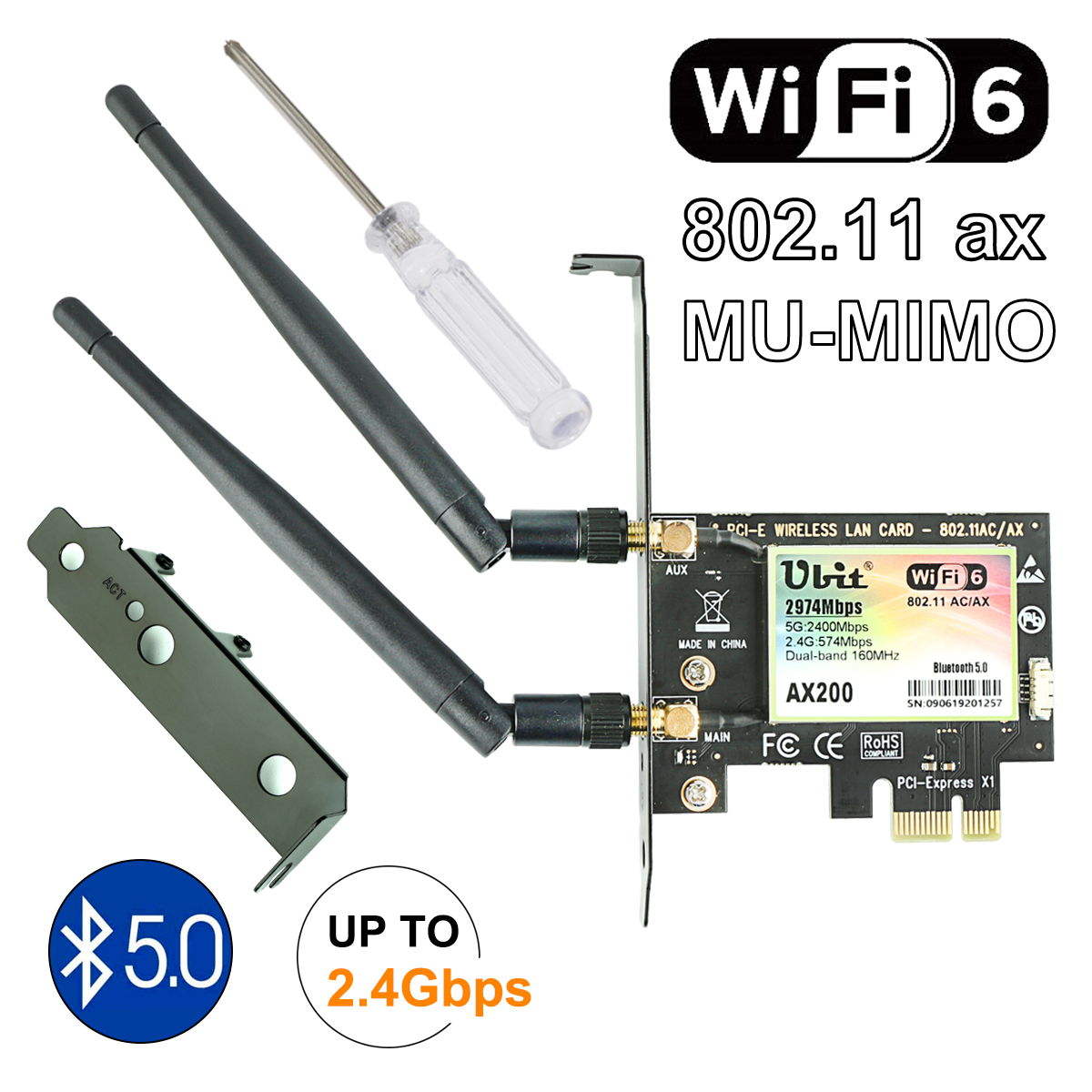

Package

1x Ubit AX200 Wi-Fi 6 PCI Express Card
2x External High Gain Antenna
1x Low Profile Bracket

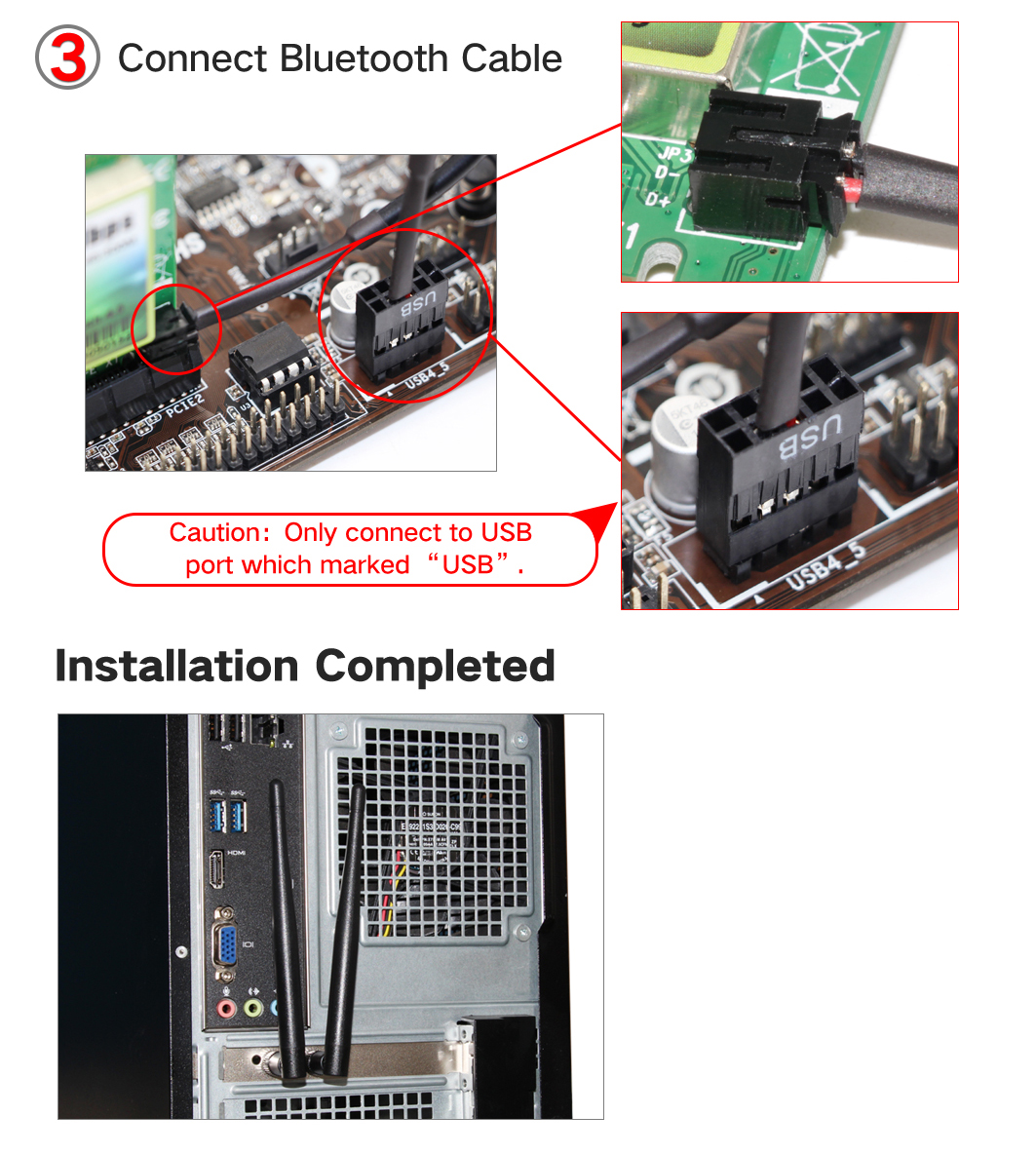

1x Bluetooth USB Cable
1x Resource CD
1x Quick Installation Guide
1x Screw
1x Screw Driver

Trouble Shooting and Solution:

1. Why this card can’t connect to 5G or PCs can’t find 5G the signal on my PC?

PCs find 5GHz signal but can’t connect: ①. Connect to 2.4G first, make sure it is connected .②. Find your 5G signal and connect, most of them will work. PCs cannot find my 5G signal but 2.4G works: ①.Connect 2.4G signal first. ②. Restart PC or re-plug this Wireless card. Or in Device Manager-Remove this card and install the driver again for it. Then PCs will find 5GHz and will allow PCs to connect.

2. Why my PCs always get poor signal or drops sometimes?

A. Test Wi-Fi signal in PC area(same spot, same height) by cell phone check if PC was placed in a Wi-Fi dead zone if yes, please change location for PCs. B. If the distance little long PCs will get poor signal or only 2.4G signal. To improve this please considers change the PCs or Wireless AP’s location. Or you can buy a more power Wi-Fi Antenna for it.

3. Why my PC find 2.4G signal only?

PCs was placed too far away from Router.5GH band will support more data speed by covers a small area. Wireless AP or Router’s signal may cannot reach PCs location. Considers decrease the distance between Router and PC.

4. I am a Linux user how can I get source code to compile my PC?

Go to open the mini CD in the package find ATH9K links get source code online. Or go to our site download ATH9K driver.

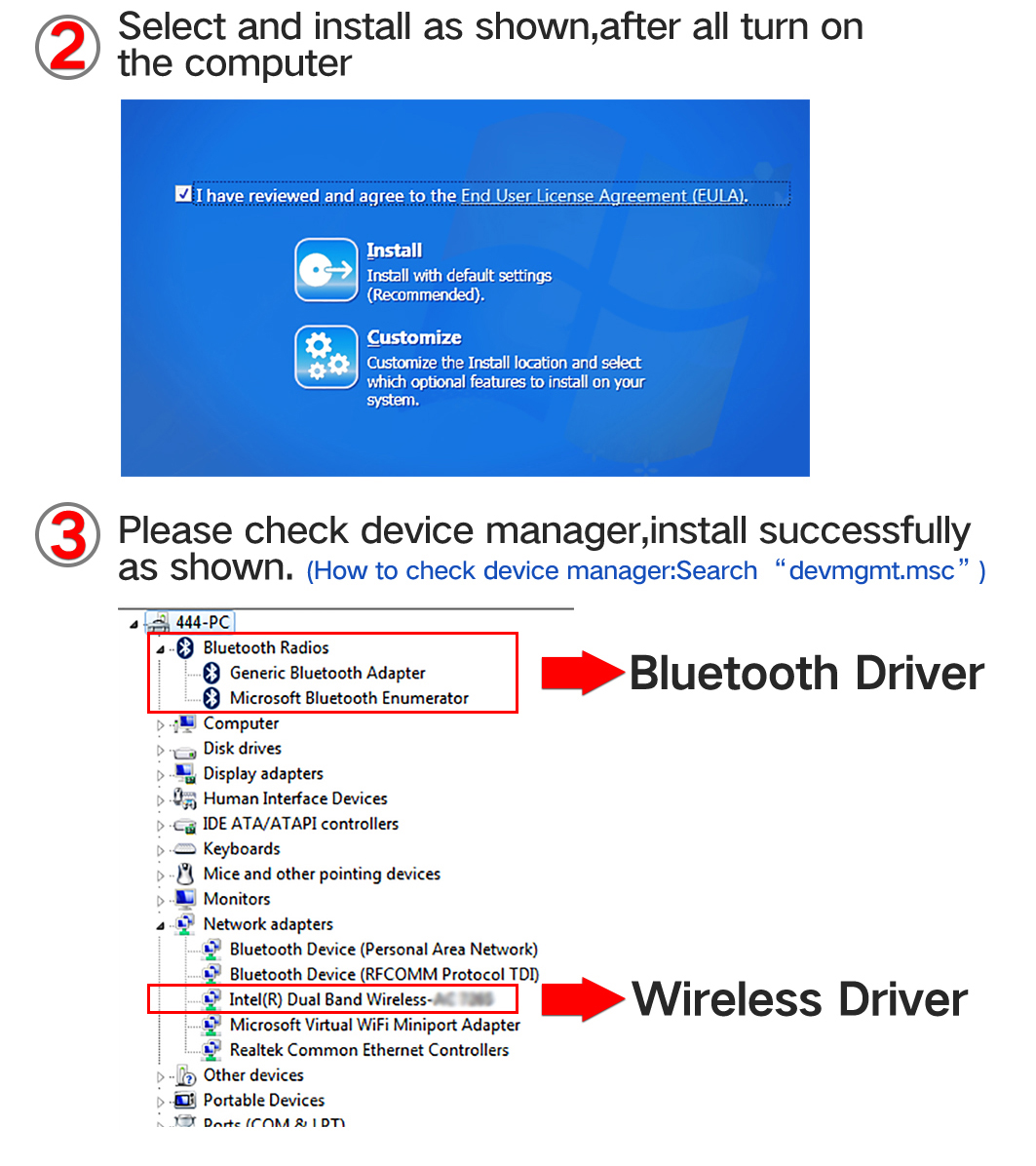

5. Windows10,8.1,8 system cannot load this card automatically how to fix this ?

Just need to install the drivers in mini-CD, the device will works properly. If do not have CD ROM, please go to our site download drivers for the models in your hand.

6. My PCs find few signals only, not as expected performance,

how to fix this?

Please remove Wi-Fi card from PCs and install it again.At the same time please screw Wi-Fi antenna and make sure it is screwed correctly. Most of the time it is Wi-Fi antenna wasn’t screwed properly.

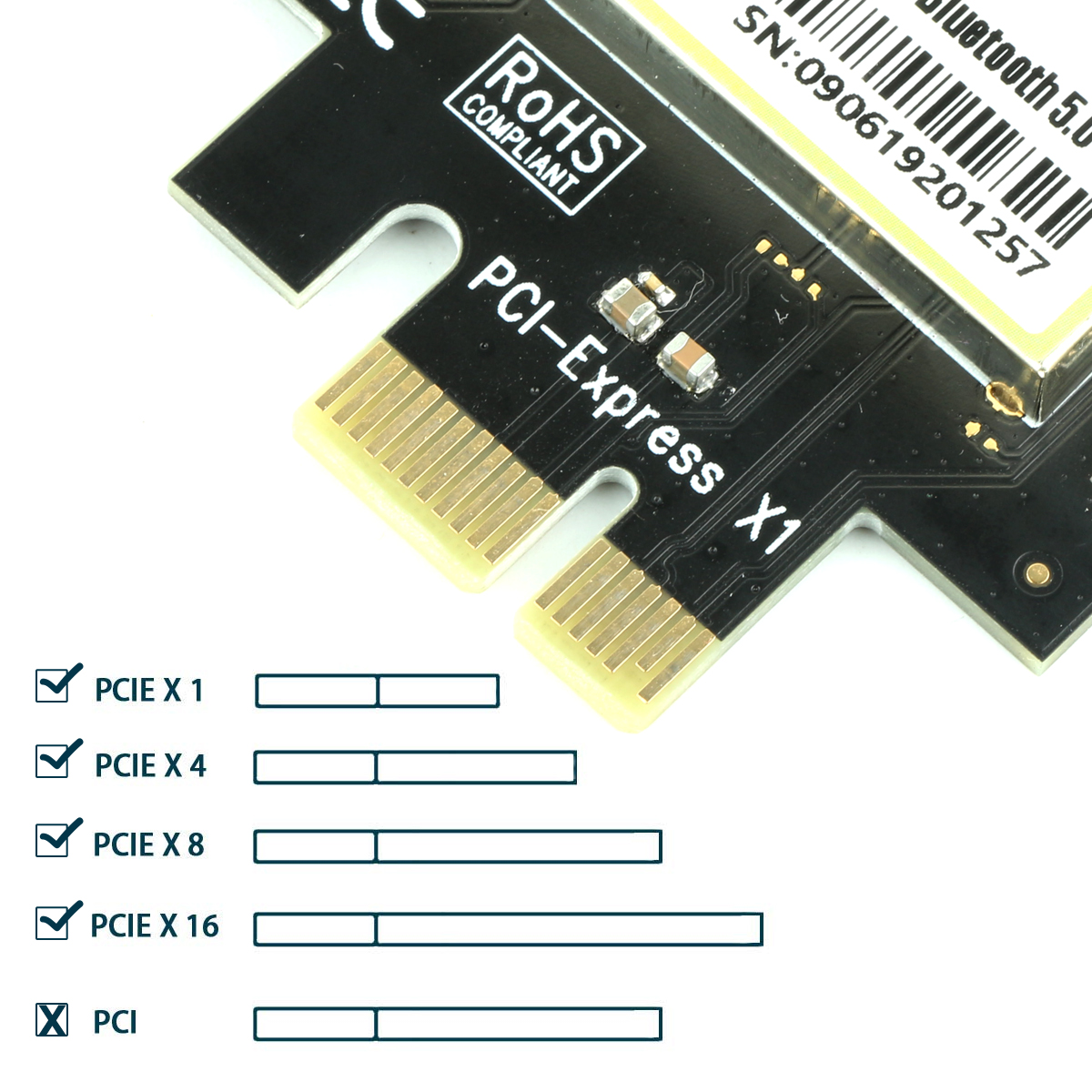

7.There a PCIE X16 port only,is it working on this ?

Absolutely YES,Works on PCIE X1, X4, X8, X16 slot

8.Where I can find support from Ubit ?

Get prompt tech-support：http://www.evisionde.com/ or Contact us after-sales Email：Ubit@evisionde.com
