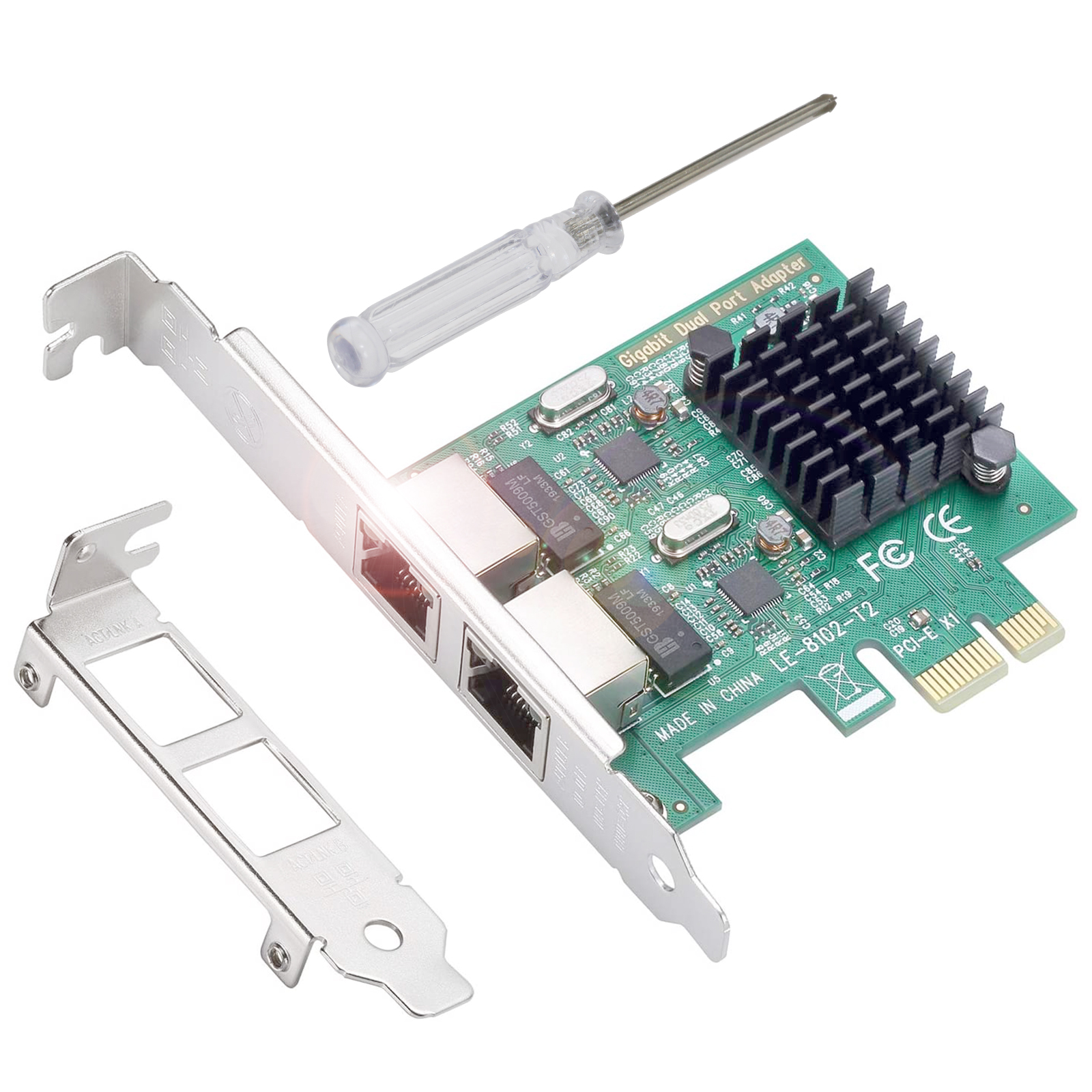

Ubit 2-Port RJ45 Gigabit Ethernet PCI-E Network Controller Card(T2)

Model: 8102_T2


Main Control Chip: RTL8111G*2

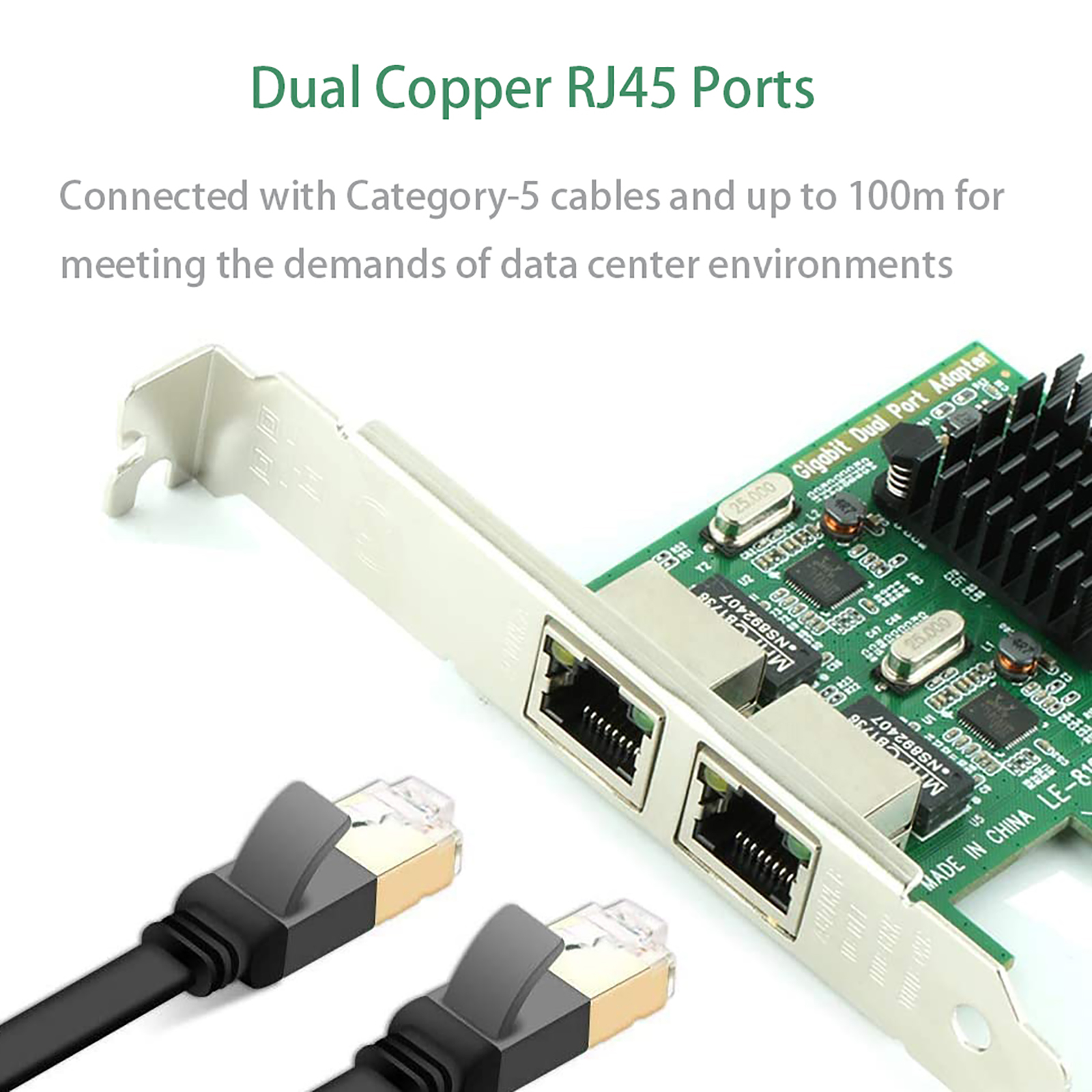

Network Interface: RJ-45*2

Transmission Rate: 10/100/1000Mbps

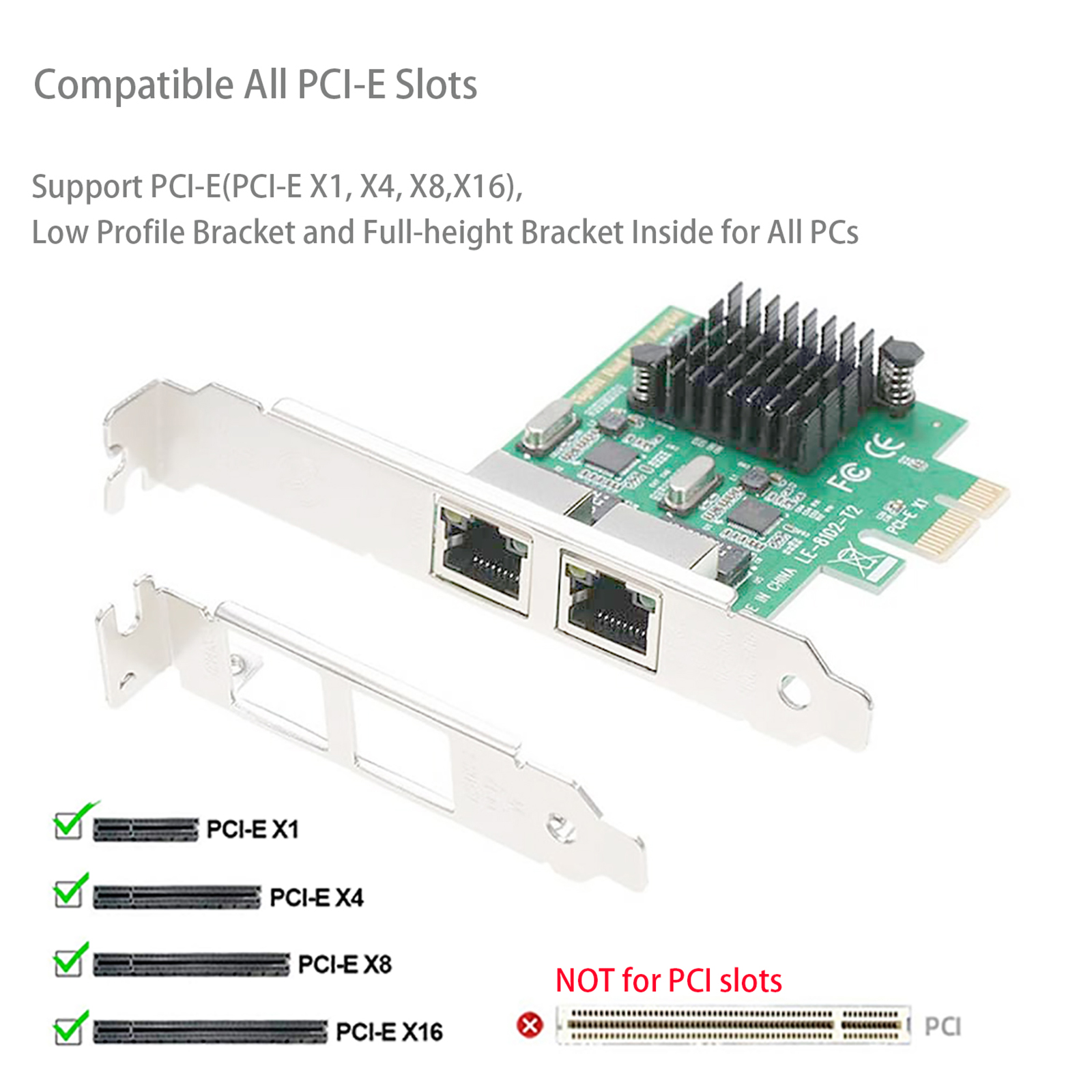

Bus Interface: PCI-E (Supports PCI-EX1 X4 X8 X16)

Support System: Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, LINUX

  • Product Description
  • Standard Setting Guide
  • Customer FAQ
  • Driver Download
  • Video

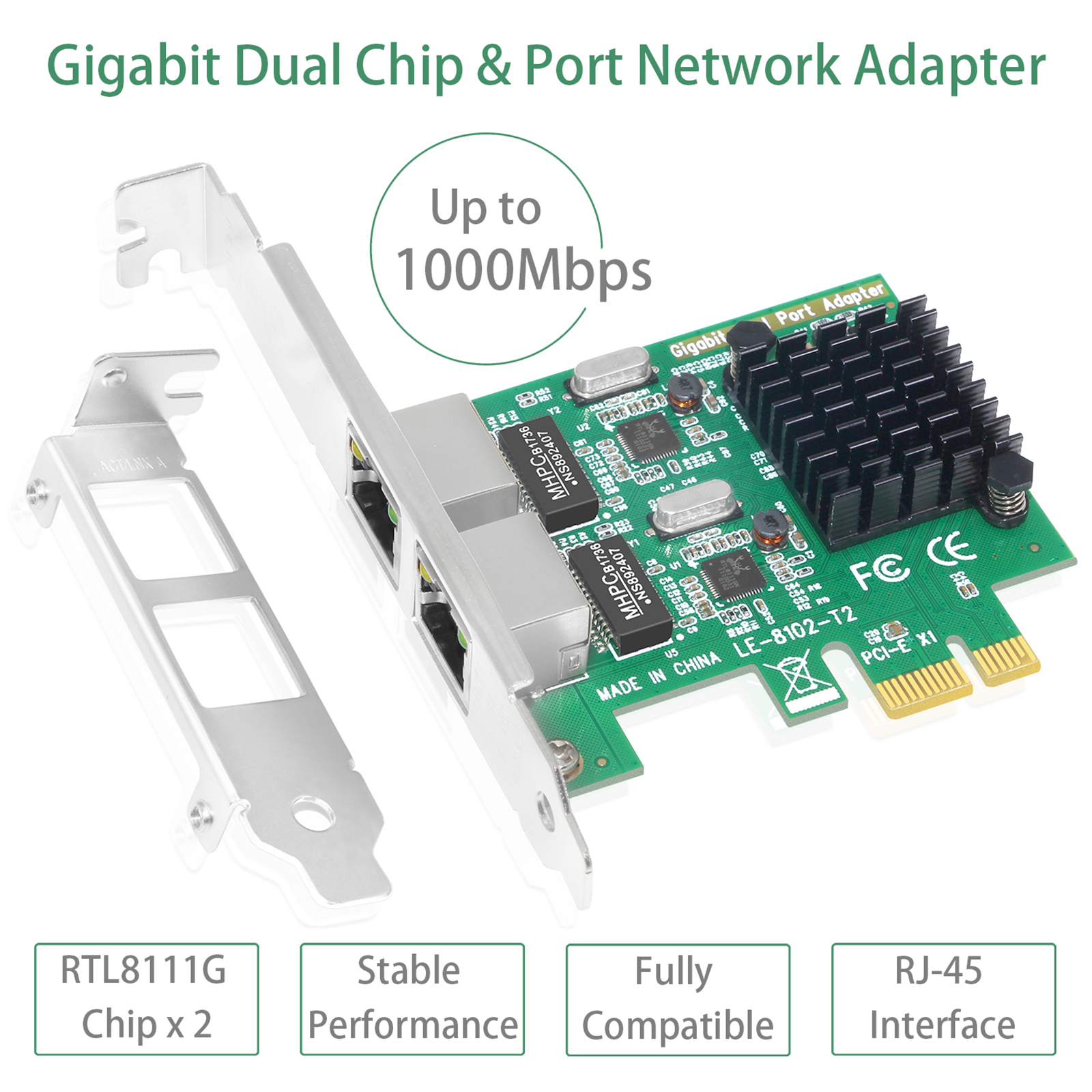

PCI-E Dual Port Gigabit Network Card

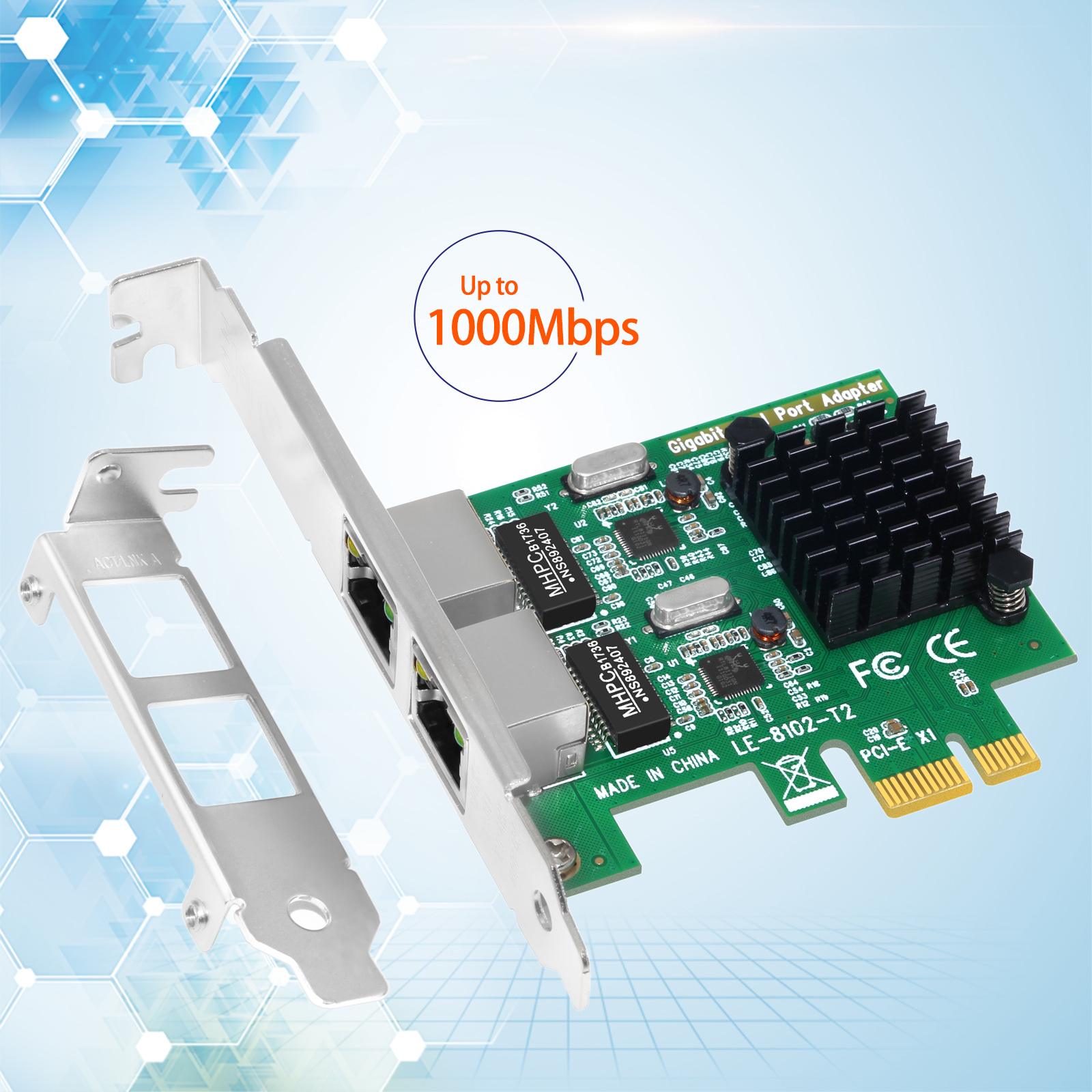

Ubit PCI-E Dual Port Gigabit Network Card

Ubit 8102-T2 chipset network card is a 10/100/1000Mbps RJ-45 2 ports PCI-E LAN card, based on intel RTL8111G chipset. the gigabit PCI-E network card designed to automatically scale with growing networks.

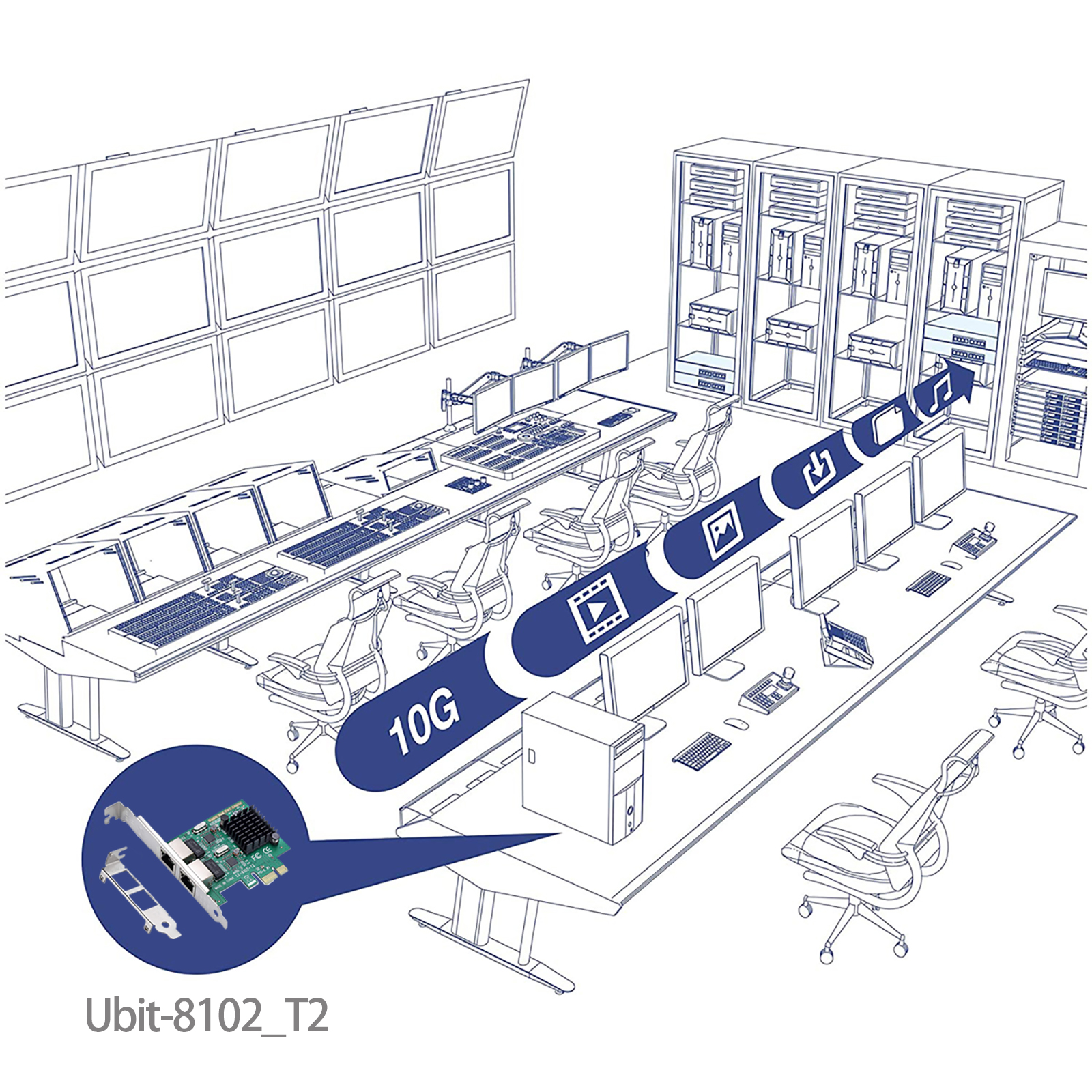

The gigabit network card with a flexible design that fits any type of PCI-E bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.

Ubit gigabit PCIe network adapter compatible with IEEE 802.3, 803.ab, 802.3u, 802.3x, 802.1, VLAN technology.10Mbps/100Mbps/1000Mbps network adaptive automatic cross detection and correction support.

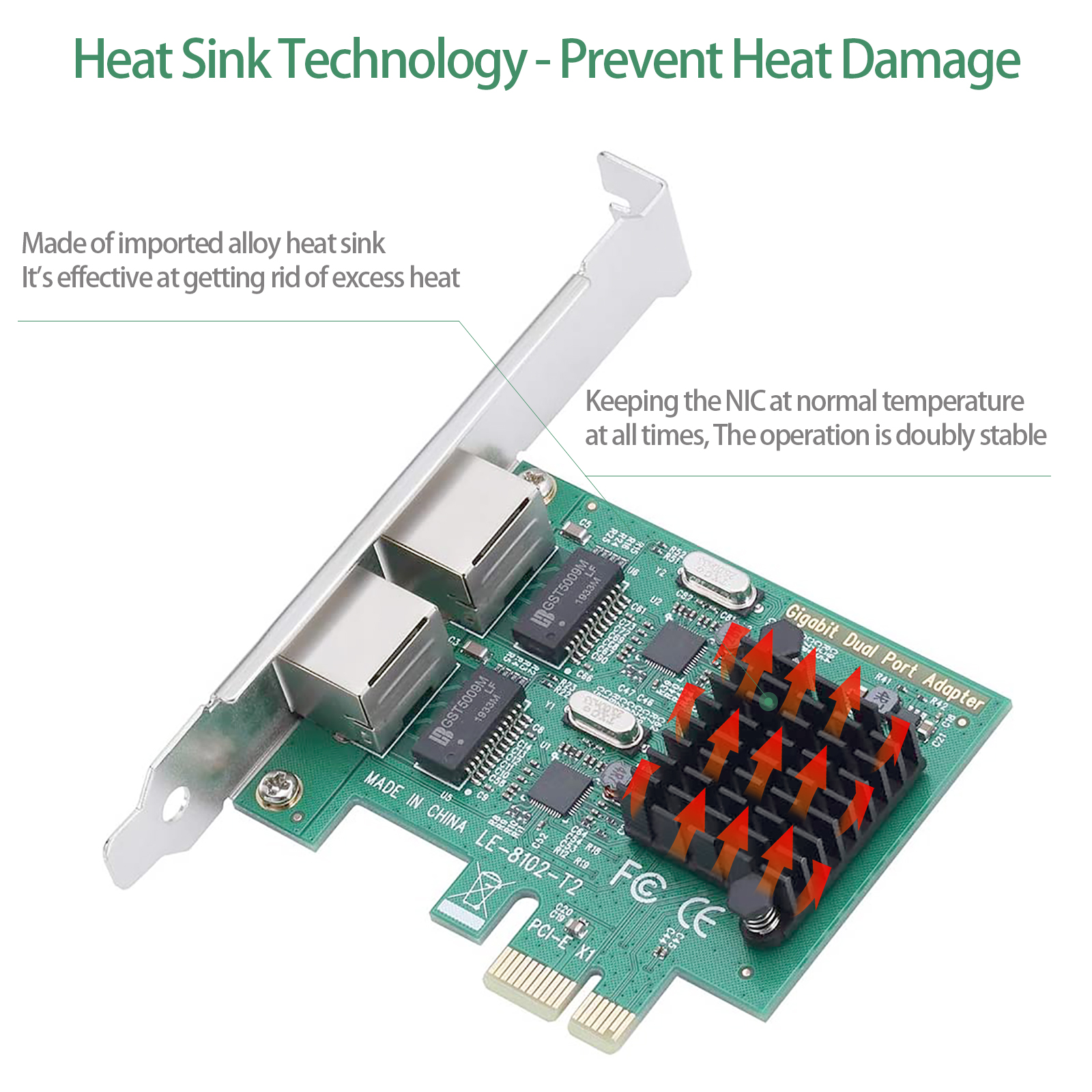

Ubit 1000Mbps RJ-45 Gigabit Network Card Ethernet Adapter Heat Sink Technology 2-Port Network Card

Realtek 8111G Chipset

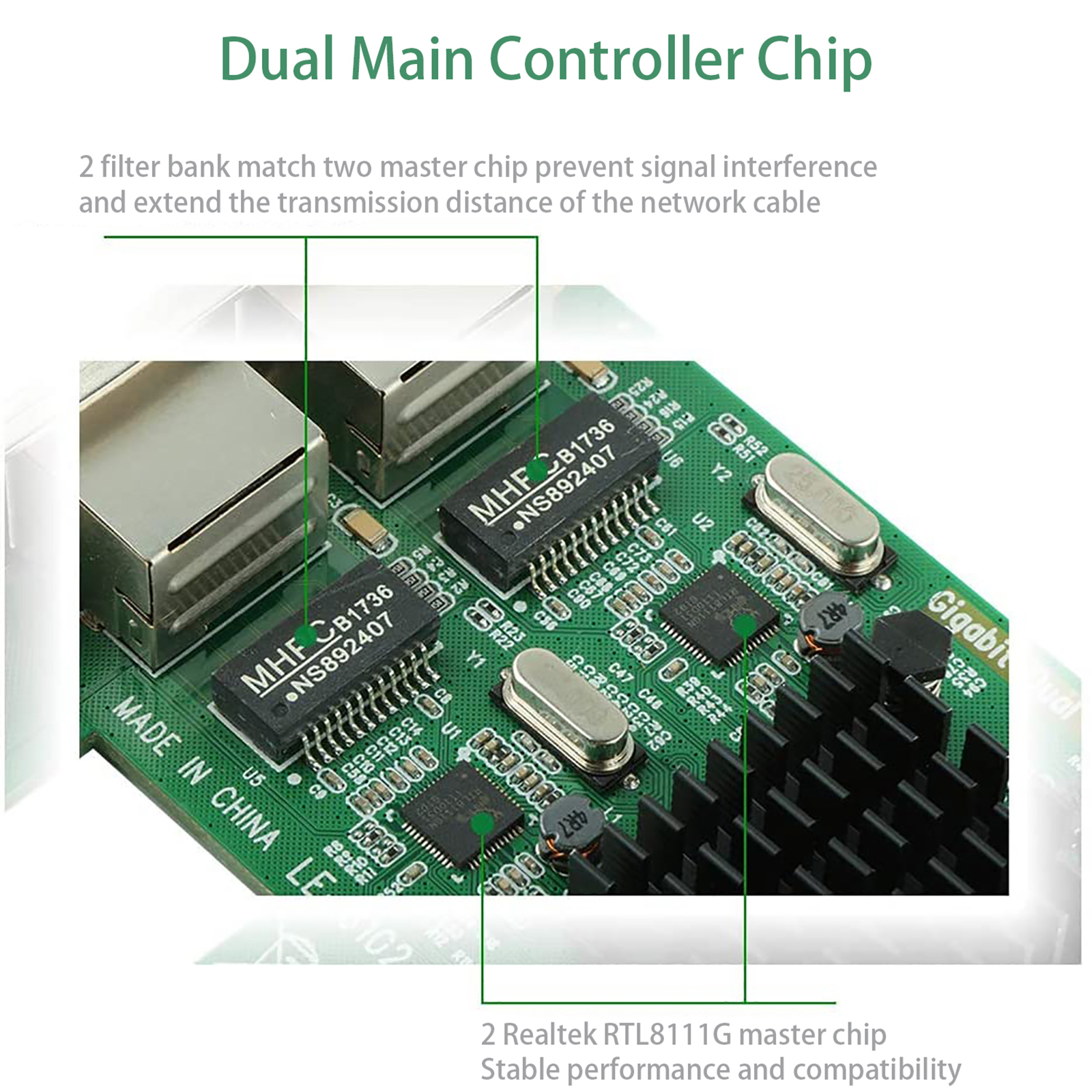

Ubit 8102_T2 Gigabit Ethernet Network Card --- Using Realtek 8111G Chipset

The Realtek RTL8111G-CG/RTL8111GS-CG 10/100/1000M Ethernet controller combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111G/RTL8111GS offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

Ubit-AX200(802.11AX WiFi 6)Ubit-WIE7265(802.11AX WiFi 5)Ubit-8102_T2(RJ-45 Ethernet Card)
Master Control ChipIntel Wi-Fi 6 AX200Intel Wireless-AC 7265Realtek 8111G *2
Product TypeWireless WiFi CardWireless WiFi CardRJ-45 Ethernet Card
PCI-E Dual Port Network Card
