Ubit 4-Port SATA III 6Gbps PCIe Controller SATA Card(SA3004)
Port: SATA3.0 * 4
Bus Interface: PCI-E X1
Supported Operating System: Windows XP / 2003 / Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Ubit SA3004 SATA Card PCIe SATA Card 4-Port PCI Express SATA 3.0 Controller Card with Low Profile Bracket PCIe to SATA III Built-in Adapter Converter for Desktop PC Support SSD HDD

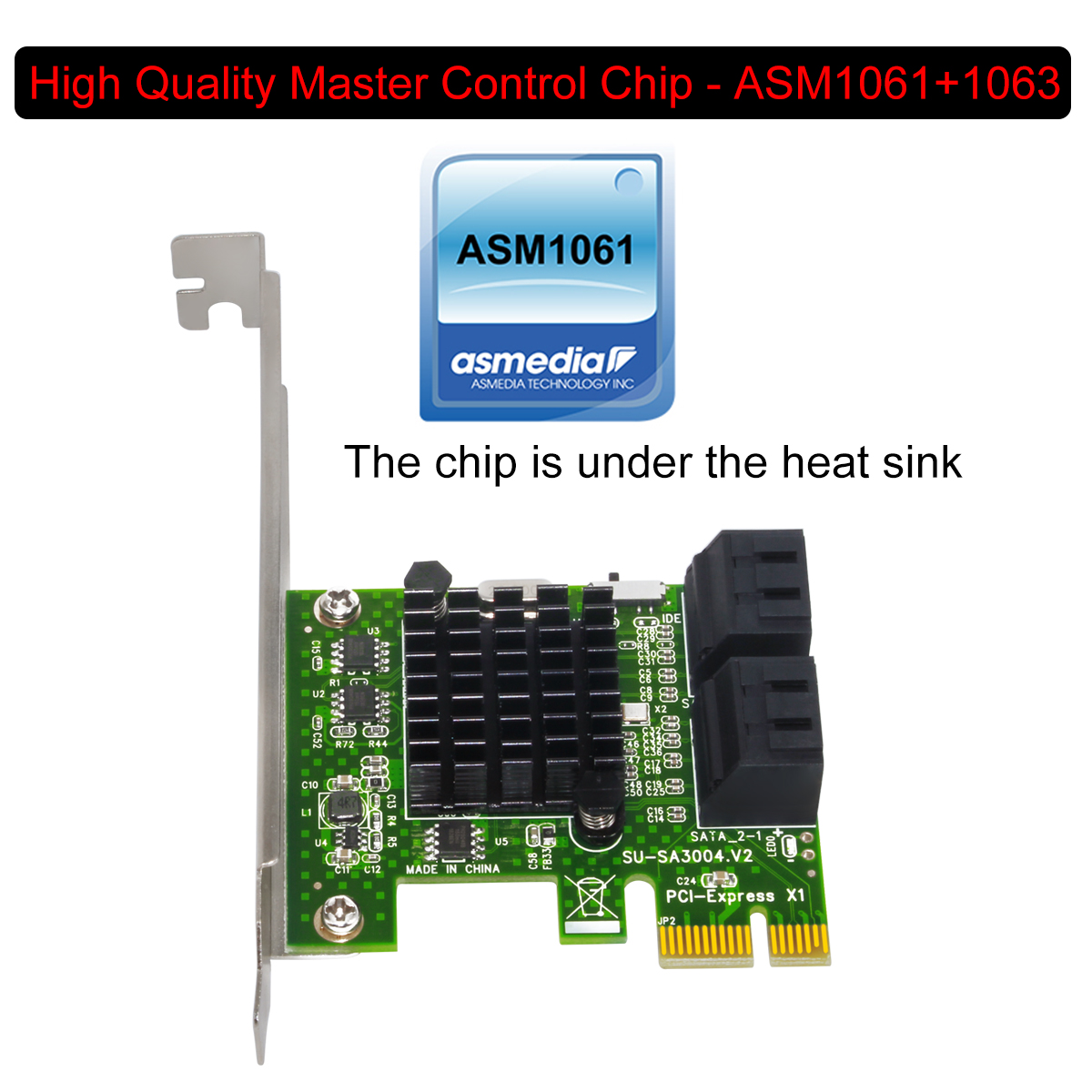

Engaged in High Speed I/O solution development, Asmedia Technology is committed to enlarging product portfolio with introducing PCI Express Products. The ASM1061, x1 PCI Express to two ports of Serial ATA, enables Serial ATA PHY up to 6Gbps high speed interface, following Serial ATA Revision 3.0 specification.

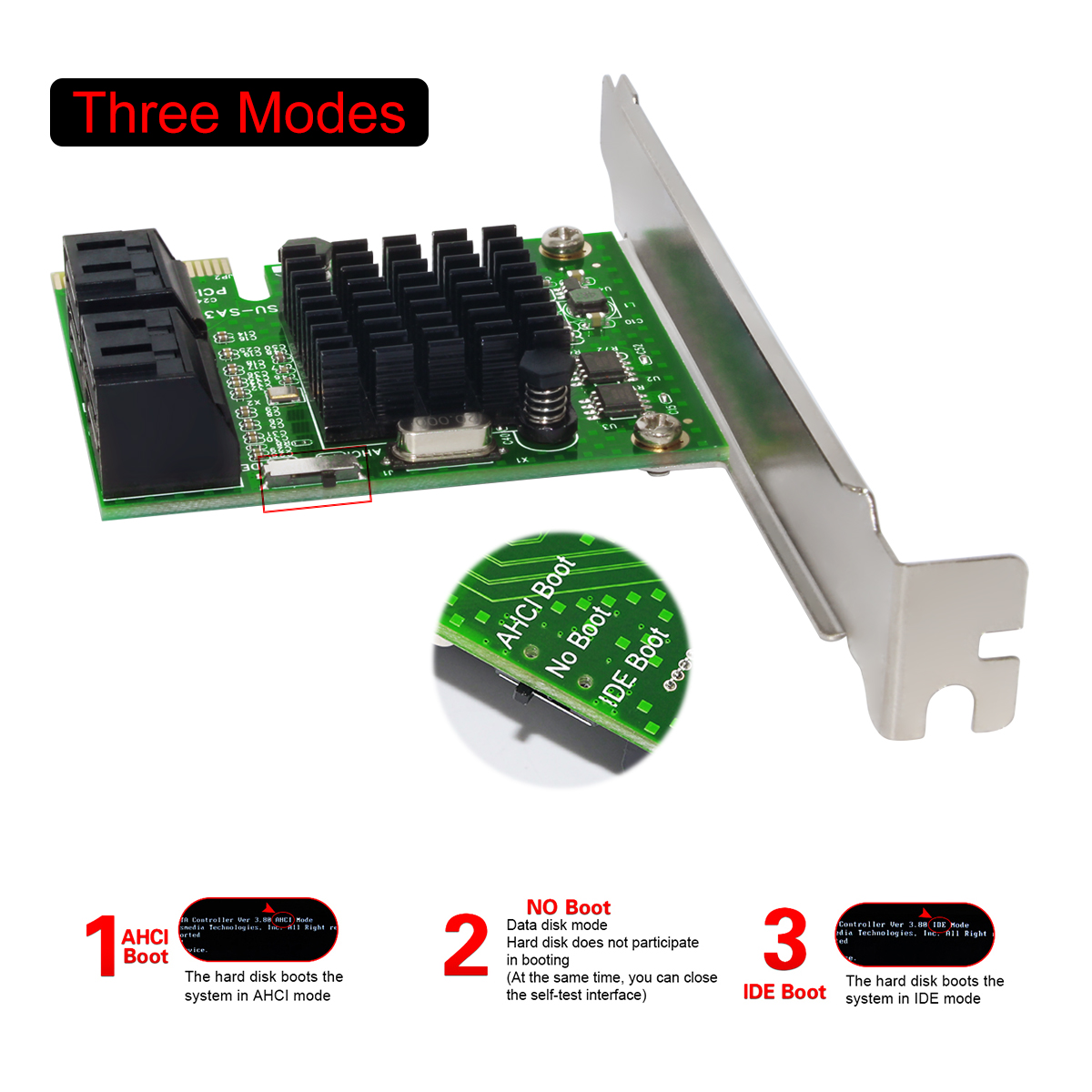

1：AHCI mode, the hard disk guides the system in AHCI mode.
2：Data disk mode, the hard disk does not participate in the boot (and can close the self-test interface).
3：The hard disk boots the system in IDE mode.
PCIe X1 to 4 SATA 3.0 ports controller card offers a simple connection between a host computer and SATA 3.0 devices(SATA hard drive or SATA device), which allows 4 SATA devices at the speed up to 6Gb/s

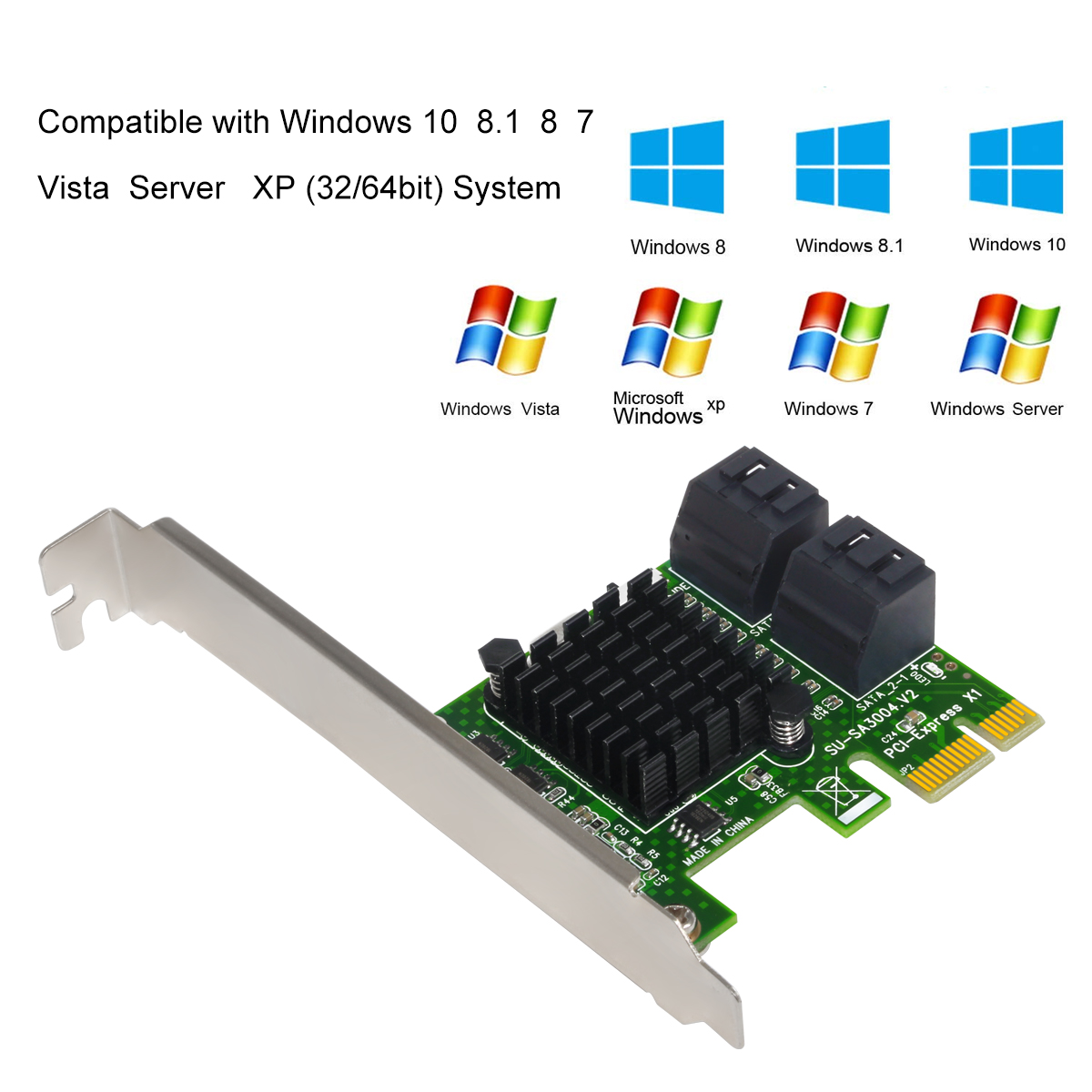

Support Windows XP / 2003 / Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10（32/64 bit）
Suitable for PCI-E interface,
Not applicable to PCI interface.
Bigger heat sink
Large area heat sink
Better heat dissipation
Long-term stable work

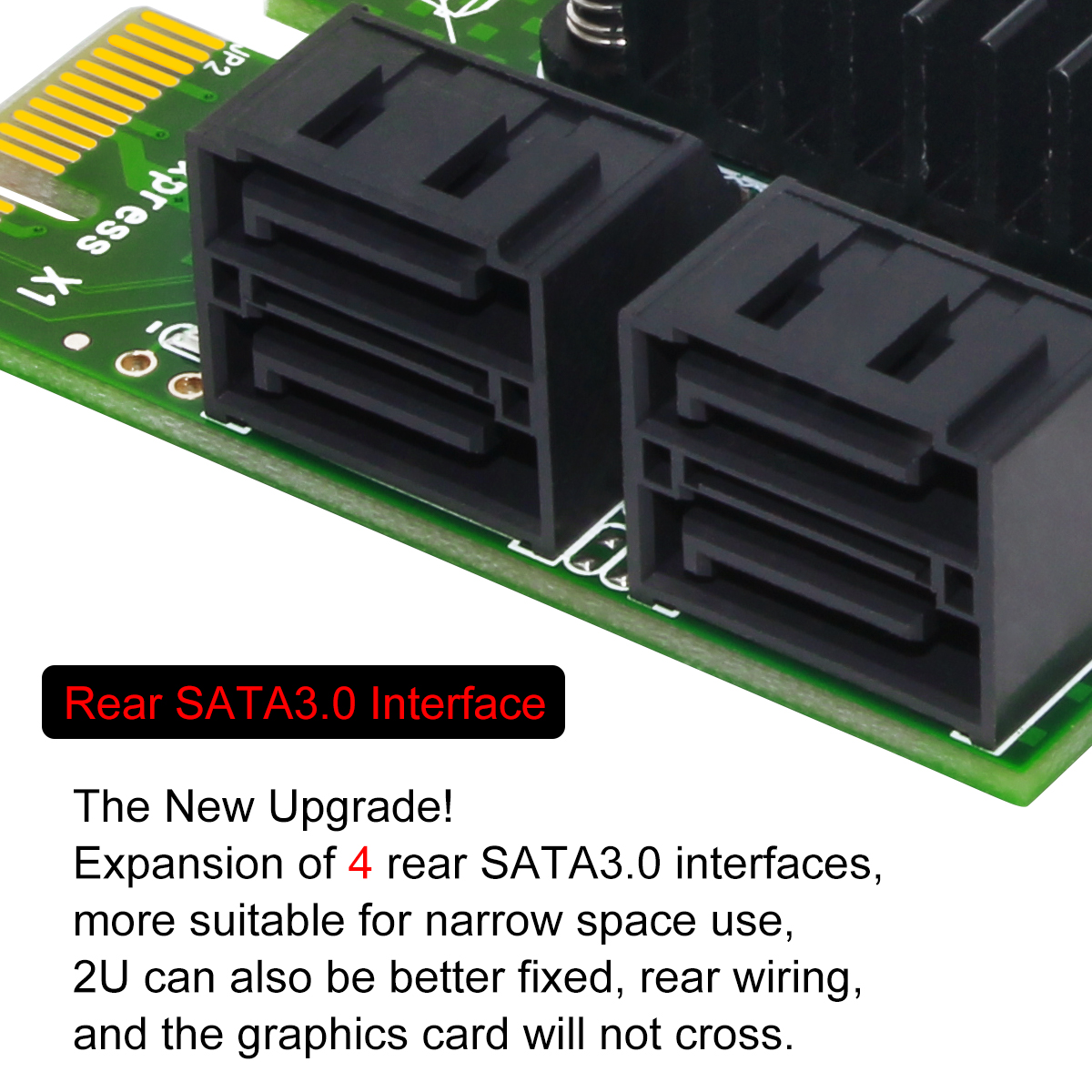

Backside location, convenient for cabling
4 rear SATA3.0 ports are provided, and the interface has a lock to avoid loose cables in use. The SATA interface uses 10 high-precision filter capacitors to effectively suppress interference and ensure signal reliability and integrity. Faster and more stable!
