RTL8111G INTEGRATED 10/100/1000M ETHERNET CONTROLLER FOR PCI EXPRESS APPLICATIONS

General Description

The Realtek RTL8111G-CG/RTL8111GS-CG 10/100/1000M Ethernet controller combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111G/RTL8111GS offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds

Advanced Configuration Power management Interface (ACPI)—power management for modern operating systems that are capable of Operating System-directed Power Management (OSPM)—is supported to achieve the most efficient power management possible. PCI MSI (Message Signaled Interrupt) and MSI-X are also supported.

Ubit 8104_T4：4 Port Network Card

The RTL8111G/RTL8111GS supports IEEE 802.3az-2010, also known as Energy Efficient Ethernet (IEEE). IEEE 802.3az-2010 operates with the IEEE 802.3 Media Access Control (MAC) Sublayer to support operation in Low Power Idle mode. When the Ethernet network is in low link utilization, IEEE allows systems on both sides of the link to save power.

Ubit Network Card PCI Express 4-Port Network Controller Card 1000Mbps RJ45 LAN Adapter Converter for Desktop PC

Ubit 8104-T4 Ethernet Adapter network Card：

Ubit 8104-T4 chipset network card is an 10/100/1000Mbps RJ45 4 ports pci LAN card,based on intel RTL8111G chipset. the gigabit PCI network card designed to automatically scale with growing networks. gigabit network card with a flexible design that fits any type of pci bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.gigabit PCI network adapter compatible with leeee 802.3, 803.ab, 802.3u, 802.3x, 802.1, vlan technology.10Mbps/100mMbps/1000Mbps network adaptive automatic cross detection and correction support.

Ubit 1000Mbps RJ45 Network Card Ethernet Adapter Heat Sink Technology 4 Port Network Card

Supports PCI MSI (Message Signaled Interrupt) and MSI-X

Supports 25MHz or 48MHz Oscillator

Built-in switching regulator (RTL8111GS) and LDO regulator (RTL8111G)

Supports power down/link down power saving/PHY disable mode

Customized LEDs Controllable LED Blinking Frequency and Duty Cycle

32-pin QFN Green package

Supports EMAC-393 ECMA ProxZzzy Standard for sleeping hosts

Supports LTR (Latency Tolerance Reporting) and OBFF (Optimized Buffer Flush/Fill)

Supports 16-set 128-byte Wake-Up Frame pattern exact matching

Supports icrosoft WPD (Wake Packet Detection)

Features

Hardware

Integrated 10/100/1000M transceiver

Auto-Negotiation with Next Page capability

Supports PCI Express 1.1

Supports pair swap/polarity/skew correction

Crossover Detection & Auto-Correction

Supports 1-Lane 2.5Gbps PCI Express Bus

Embedded OTP memory

Supports hardware ECC (Error Correction Code) function

Supports hardware CRC (Cyclic Redundancy Check) function

Transmit/Receive on-chip buffer support

The RTL8111G/RTL8111GS supports the PCI Express 1.1 bus interface for host communications with power management, and is compatible with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space. The RTL8111G/RTL8111GS features embedded One-Time-Programmable (OTP) memory. The RTL8111G/RTL8111GS provides a built-in switching regulator (RTL8111GS) or LDO regulator (RTL8111G).

Product Function Details Display:

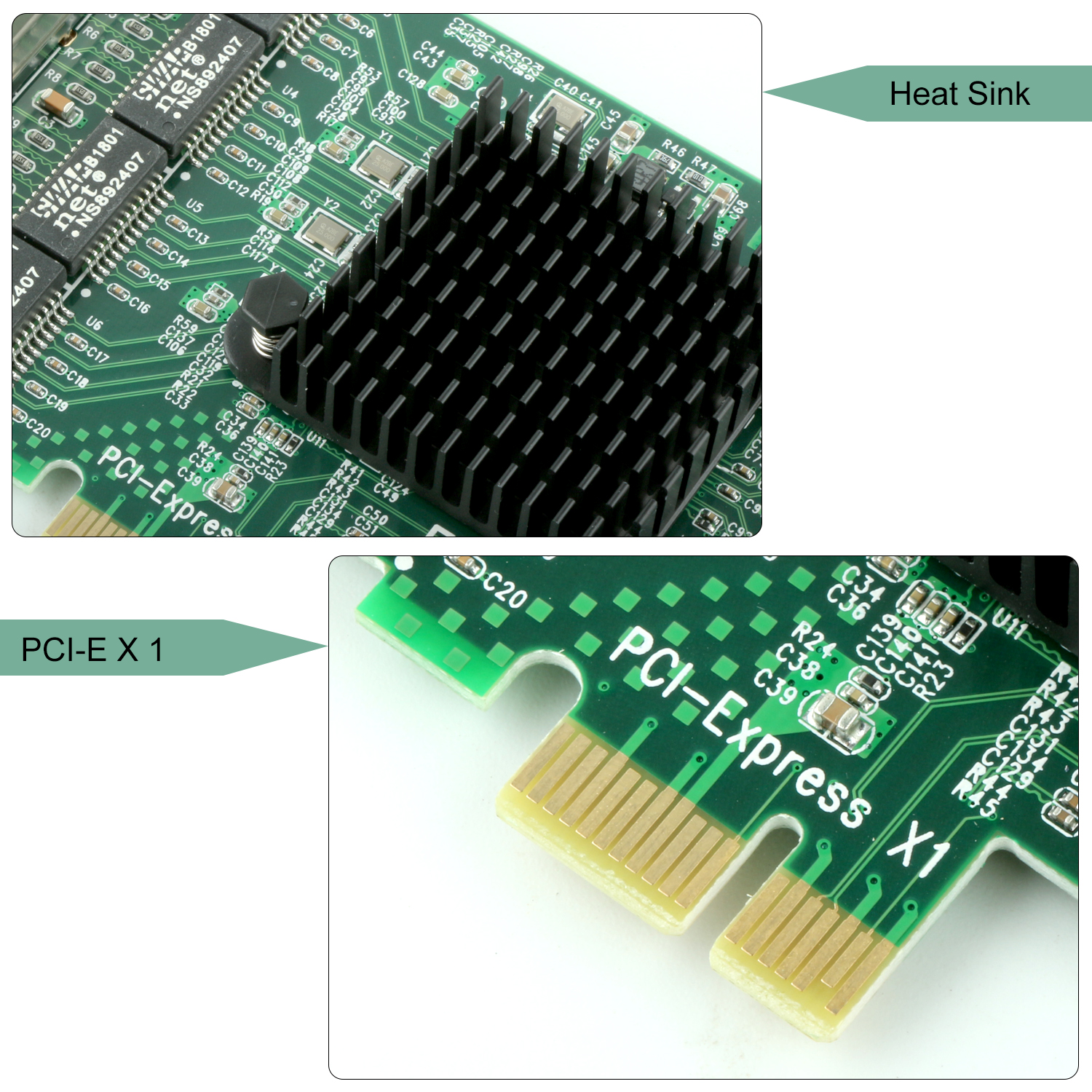

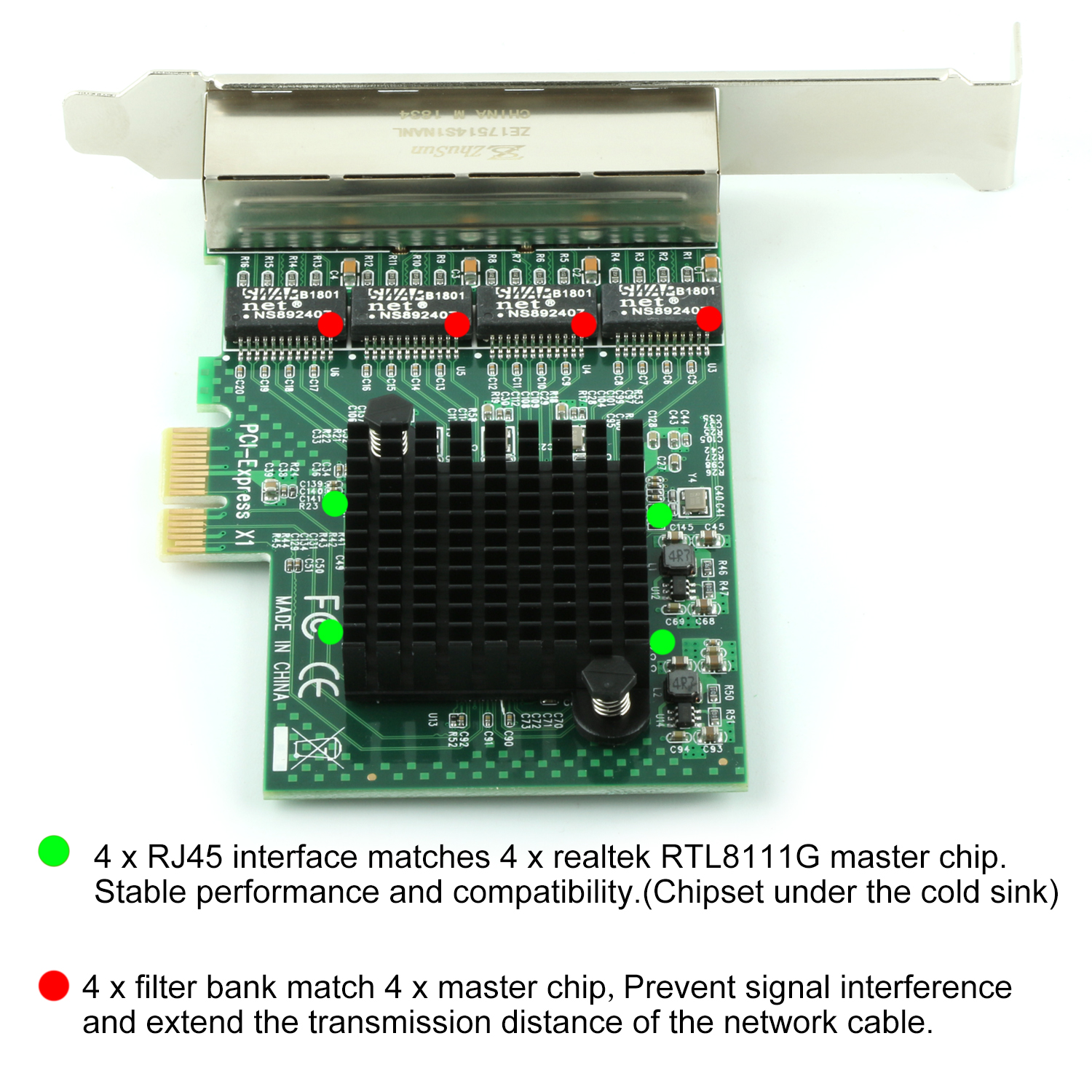

Heat Sink Technology The heat sink with imported alloy material can effectively discharge excess heat, so that the network card is always at normal temperature, so that the product runs stably Compatible with 99% of operating systems	4* RJ-45 Interface Support Microsoft NDIS5, NDIS6 checksum and offload, (IPv4, IPv6, TCP, UDP) and Split task, offload (large transfer V1 and mass transfer V2), support EMAC-393 ECMA ProxZzzy host sleep standard, the network card support full duplex flow control (EEE802.3X)	4* Filter It can stably process and filter line interference, and extend the transmission distance of the network cable. Compatible for PCI-E slot Not compatible for PCI slot
