Ubit WiFi Card AC 1200Mbps, Wireless WiFi PCIe Network Adapter Card 5GHz/2.4GHz Dual Band PCI Express Network Card and 2 Antenna for Desktop/PC Gaming(WIE7265)

High-Speed Dual Band for Better Wi-Fi Experience

Install your adapter easily by plugging into your desktop’s PCI-E slot to upgrade your connection. Provides freedom to move desktops anywhere with a WiFi connection.

Get Faster AC WiFi for your Desktop PC

Dual band, 2x2 Wi-Fi adapter. It’s engineered to deliver lower power consumption, improved RF coexistence, and complete Microsoft Windows 10* support. Combined with processors and exceptional Intel wireless innovations like Dynamic Regulatory Solution, Dual Band Wireless-AC 7265 dramatically reshapes your connected experience at home, work or on the go.

With 802.11ac and 2 data streams get more data, robust connections, better coverage, and faster data rates. Delivers up to 6x faster Wi-Fi speeds (up to 867 Mbps) than 802.11n (150Mbps), with up to 3x more bandwidth per stream for more users and devices.

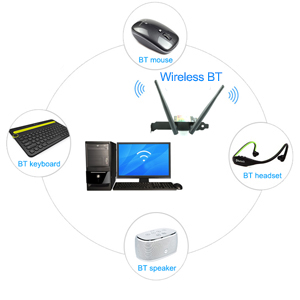

Greater Coverage with Beamforming Beamforming technology smartly focuses WiFi signals towards connected devices for stable connections and a boosted range.	Wireless Connect Dual mode enables BR/EDR-Low Energy devices to act as a hub and peripheral at the same time. Connects to the newest low energy as well as your familiar devices, such as headsets, keyboard, mice and more.	Supported Operating Systems Windows 10, 32-bit, Windows 10, 64-bit, Windows 8.1, 32-bit, Windows 8.1, 64-bit, Windows 7, 32-bit, Windows 7, 64-bit, Linux*

Trouble Shooting and Solution:

1. Why this card can’t connect to 5G or PCs can’t find 5G the signal on my PC?

PCs find 5GHz signal but can’t connect: ①. Connect to 2.4G first, make sure it is connected .②. Find your 5G signal and connect, most of them will work. PCs cannot find my 5G signal but 2.4G works: ①.Connect 2.4G signal first. ②. Restart PC or re-plug this Wireless card. Or in Device Manager-Remove this card and install the driver again for it. Then PCs will find 5GHz and will allow PCs to connect.

2. Why my PCs always get poor signal or drops sometimes?

A. Test Wi-Fi signal in PC area(same spot, same height) by cell phone check if PC was placed in a Wi-Fi dead zone if yes, please change location for PCs. B. If the distance little long PCs will get poor signal or only 2.4G signal. To improve this please considers change the PCs or Wireless AP’s location. Or you can buy a more power Wi-Fi Antenna for it.

3. Why my PC find 2.4G signal only?

PCs was placed too far away from Router.5GH band will support more data speed by covers a small area. Wireless AP or Router’s signal may cannot reach PCs location. Considers decrease the distance between Router and PC.

4. I am a Linux user how can I get source code to compile my PC?

Go to open the mini CD in the package find ATH9K links get source code online. Or go to our site download ATH9K driver.

5. Windows10,8.1,8 system cannot load this card automatically how to fix this ?

Just need to install the drivers in mini-CD, the device will works properly. If do not have CD ROM, please go to our site download drivers for the models in your hand.

6. My PCs find few signals only, not as expected performance,

how to fix this?

Please remove Wi-Fi card from PCs and install it again.At the same time please screw Wi-Fi antenna and make sure it is screwed correctly. Most of the time it is Wi-Fi antenna wasn’t screwed properly.

7.There a PCIE X16 port only,is it working on this ?

Absolutely YES,Works on PCIE X1, X4, X8, X16 slot

8.Where I can find support from Ubit ?

Get prompt tech-support：http://www.evisionde.com/ or Contact us after-sales Email：Ubit@evisionde.com
