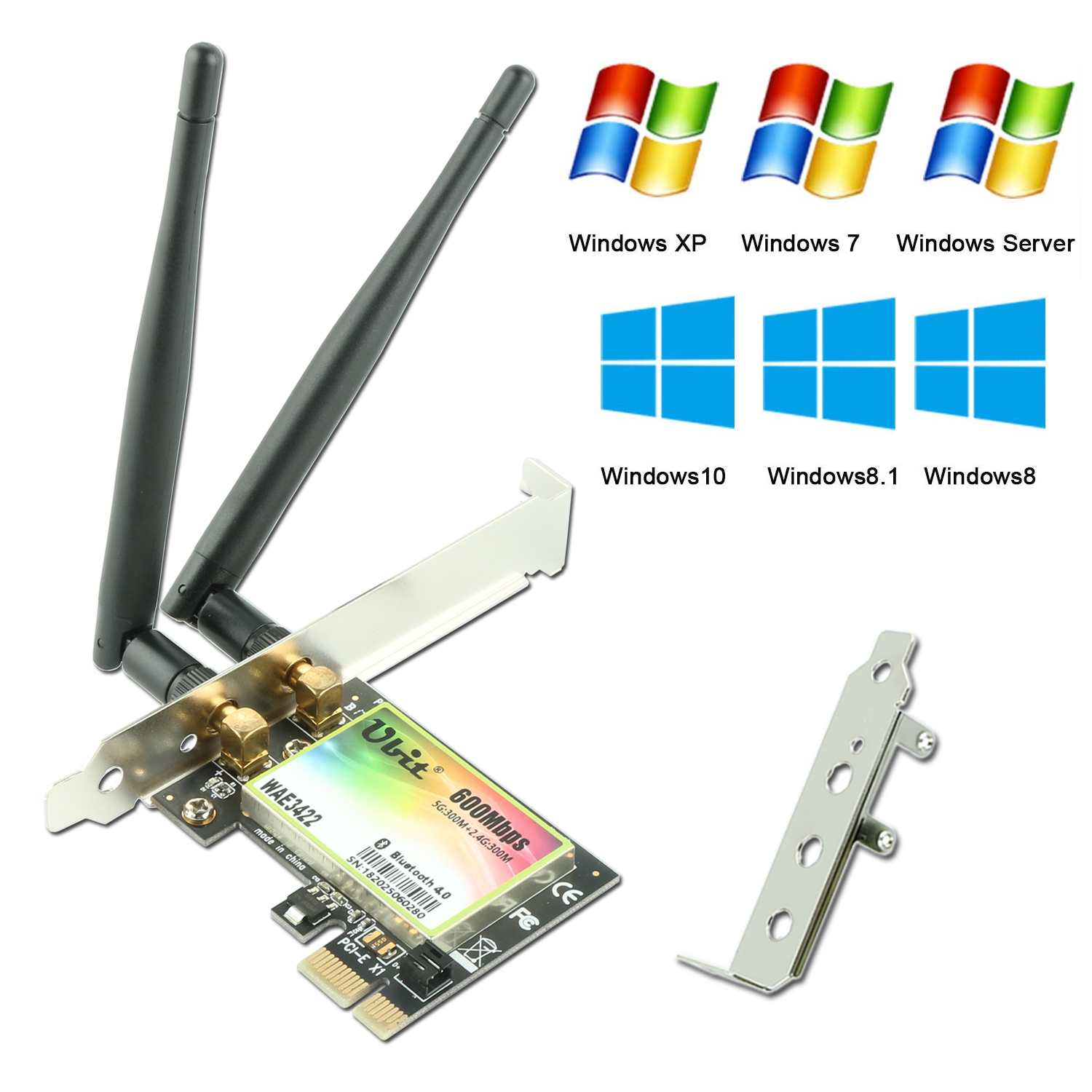

Ubit-WAE3422 Bluetooth 4.0 Wireless Dual Band 5GHz/2.4GHz PCI Express (PCIe) Wi-Fi Card：

PCIe WiFi Card Dual-band（5GHz 2.4GHz）600Mbps Bluetooth 4.0 Wireless Network Card PCIe WiFi Adapter Bluetooth PCI-E Wireless WiFi Network Adapter Faster Speed

Model：WAE3422
Bluetooth：4.0
Antenna：360° Rotation External 6dBi X 2
Data Modulation：OFDM/CCK/16-QAM/64-QAM
Wireless Speed：5GHz 300Mbps or 2.4GHz 300Mbps
Connect Interface：PCI express X1,Compatible with X4,X8,X16 Slot
Supported Operating Systems： Windows 10, 32-bit*, Windows 10, 64-bit*, Windows 8.1, 32-bit*, Windows 8.1, 64-bit*, Windows 8, 32-bit*, Windows 8, 64-bit*, Windows 7, 32-bit*, Windows 7, 64-bit*,Windows XP*, Linux*

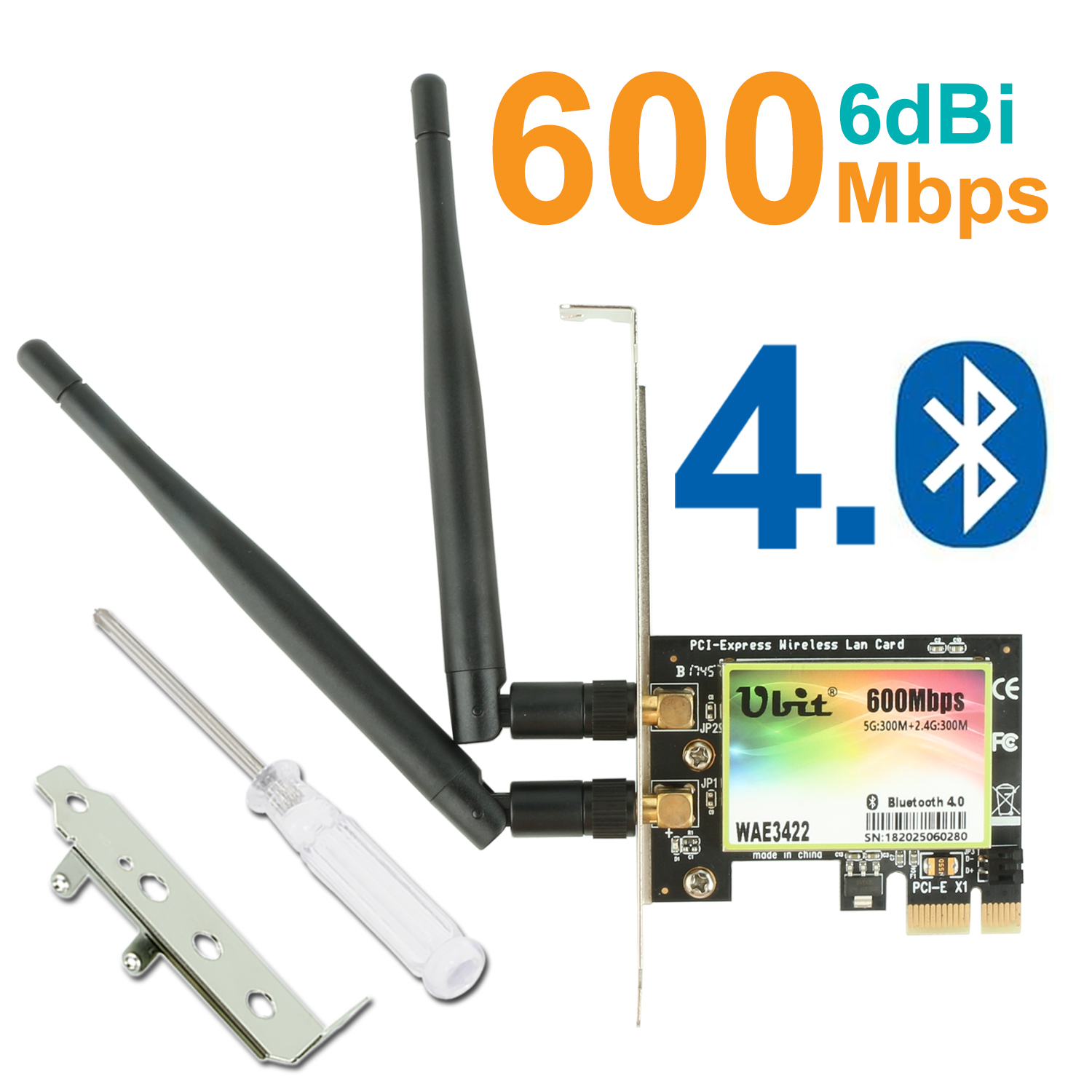

Package Includes：1* Box with the Word "Ubit"；1* Ubit WAE3422 Wireless Dual-band Network WiFi Card；2* 6dBi Antenna；1* Bluetooth Cable；1* Low Profile Bracket；1 * Screwdriver；2 * Screw；1* Drive CD；1* User Manual

PCIe WiFi Card Dual Band Wireless （5GHz 2.4GHz）600Mbps Bluetooth 4.0 PCIe WiFi Network Card

Support all UPCs processors
With extra low profile metal bracket (3.15in) for installing on small form factor desktop PC
Powered by PCI Express slot on computer motherboard, no external power supply needed
Other Specification：Intel chipsets, PCI Express X 1 interface, WPA2/WPA/WEP wireless encryption supported
Please install latest driver before using, which is available in disc or visit the official website of chip to download the driver of the corresponding model
Supported Operating Systems：Windows 10, 32-bit*, Windows 10, 64-bit*, Windows 8.1, 32-bit*, Windows 8.1, 64-bit*, Windows 8, 32-bit*, Windows 8, 64-bit*, Windows 7, 32-bit*, Windows 7, 64-bit*,Windows XP*, Linux*; Windows 10 does not require a driver (it will automatically recognize the network card)

Ubit-WAE3422 Bluetooth 4.0 PCIe WiFi Card --- Technical Specifications：

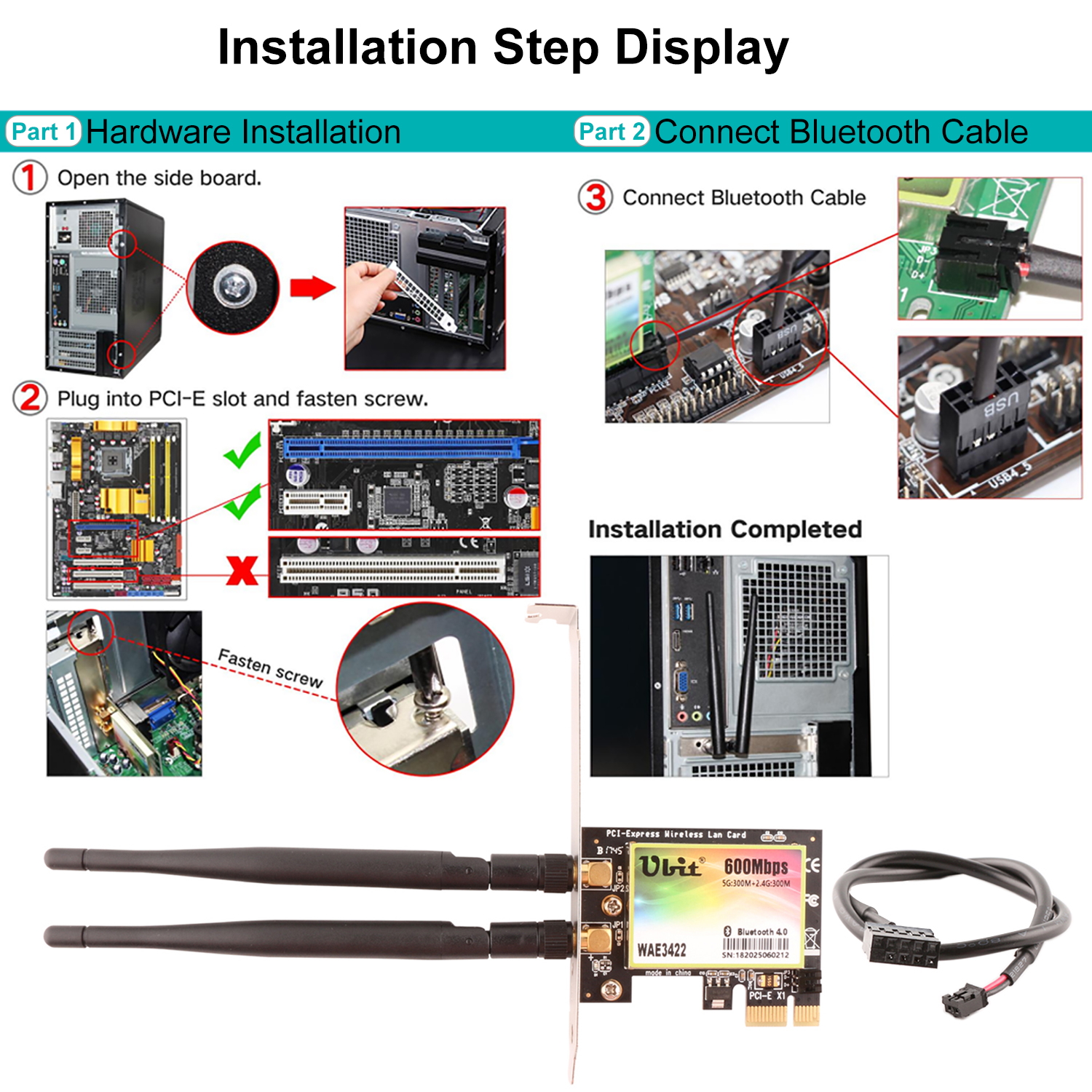

Adopt Qualcomm AR9462 Chip Supported Operating Systems： Windows 10, 32-bit, Windows 10, 64-bit, Windows 8.1, 32-bit, Windows 8.1, 64-bit, Windows 8, 32-bit, Windows 8, 64-bit, Windows 7, 32-bit, Windows 7, 64-bit,Windows XP, Linux Dual-band (5 GHz/2.4GHz), 2-stream 802.11n and Bluetooth 4.0 single-chip combo solution	Bluetooth 4.0 Technology Higher security and faster transfer rate Equipped with advanced technology and compatible with 99% Bluetooth capacity devices,Wireless connect mouse,keyboard,earphone,speaker and more...	Easy Setup and Secured WiFi Signal It's very easy to install on supported systems Make sure your system is compatible with this WiFi card Learn to install and set up WiFi signals through the user manual Ubit wireless WiFi network card, making wired wireless, making work and life more convenient!

Trouble Shooting and Solution:

1. Why this card can’t connect to 5G or PCs can’t find 5G the signal on my PC?

PCs find 5GHz signal but can’t connect: ①. Connect to 2.4G first, make sure it is connected .②. Find your 5G signal and connect, most of them will work. PCs cannot find my 5G signal but 2.4G works: ①.Connect 2.4G signal first. ②. Restart PC or re-plug this Wireless card. Or in Device Manager-Remove this card and install the driver again for it. Then PCs will find 5GHz and will allow PCs to connect.

2. Why my PCs always get poor signal or drops sometimes?

A. Test Wi-Fi signal in PC area(same spot, same height) by cell phone check if PC was placed in a Wi-Fi dead zone if yes, please change location for PCs. B. If the distance little long PCs will get poor signal or only 2.4G signal. To improve this please considers change the PCs or Wireless AP’s location. Or you can buy a more power Wi-Fi Antenna for it.

3. Why my PC find 2.4G signal only?

PCs was placed too far away from Router.5GH band will support more data speed by covers a small area. Wireless AP or Router’s signal may cannot reach PCs location. Considers decrease the distance between Router and PC.

4. I am a Linux user how can I get source code to compile my PC?

Go to open the mini CD in the package find ATH9K links get source code online. Or go to our site download ATH9K driver.

5. Windows10,8.1,8 system cannot load this card automatically how to fix this ?

Just need to install the drivers in mini-CD, the device will works properly. If do not have CD ROM, please go to our site download drivers for the models in your hand.

6. My PCs find few signals only, not as expected performance,

how to fix this?

Please remove Wi-Fi card from PCs and install it again.At the same time please screw Wi-Fi antenna and make sure it is screwed correctly. Most of the time it is Wi-Fi antenna wasn’t screwed properly.

7.There a PCIE X16 port only,is it working on this ?

Absolutely YES,Works on PCIE X1, X4, X8, X16 slot

8.Where I can find support from Ubit ?

Get prompt tech-support：http://www.evisionde.com/ or Contact us after-sales Email：Ubit@evisionde.com

Ubit-WAE3422 Bluetooth 4.0 Wireless Dual Band 5GHz/2.4GHz PCI Express (PCIe) Wi-Fi Card：

PCIe WiFi Card Dual Band Wireless （5GHz 2.4GHz）600Mbps Bluetooth 4.0 PCIe WiFi Network Card

Ubit-WAE3422 Bluetooth 4.0 PCIe WiFi Card --- Technical Specifications：

Adopt Qualcomm AR9462 Chip

Bluetooth 4.0 Technology

Easy Setup and Secured WiFi Signal
